Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

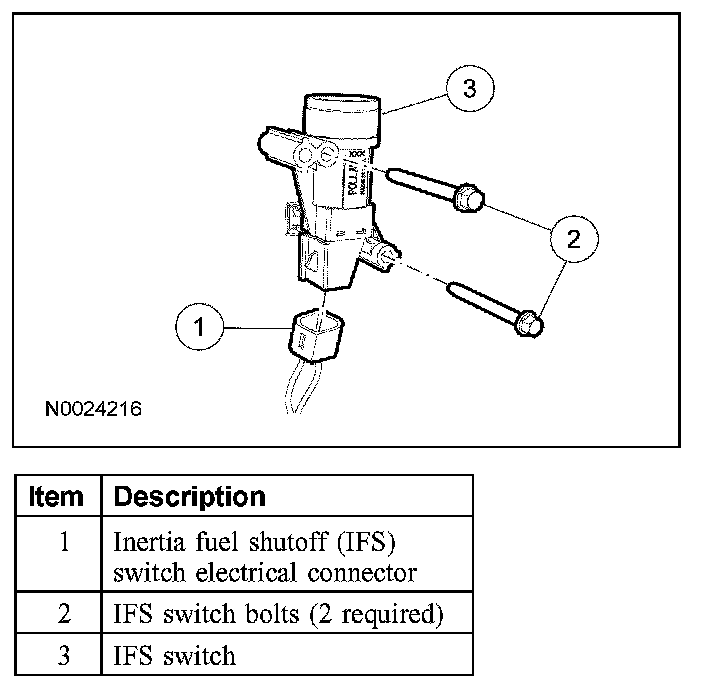

Removal and Installation
1. Disconnect the battery ground cable.
2. Position back the RH trunk liner.
3. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.
4. Remove the 2 IFS switch bolts and the IFS switch.
5. To install, reverse the removal procedure.
