Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

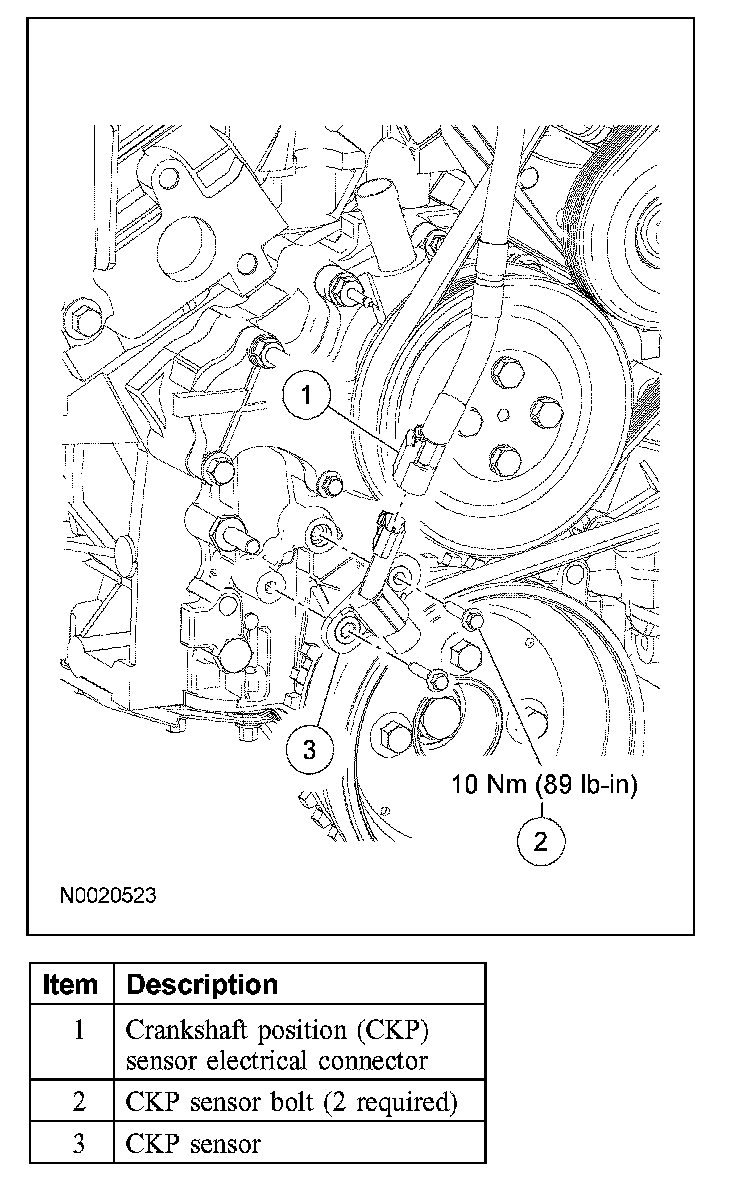

Removal and Installation
1. Disconnect the battery ground cable.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. Disconnect the crankshaft position (CKP) sensor electrical connector.
4. Remove the 2 bolts and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).

5. To install, reverse the removal procedure.
