Headlamp Switch: Service and Repair

HEADLAMP SWITCH







Removal and Installation

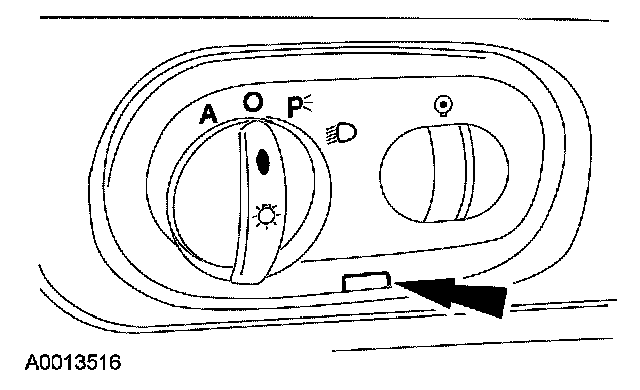

1. CAUTION: Cover the end of the tool with tape to prevent damage.

Insert a thin tool and remove the headlamp switch.

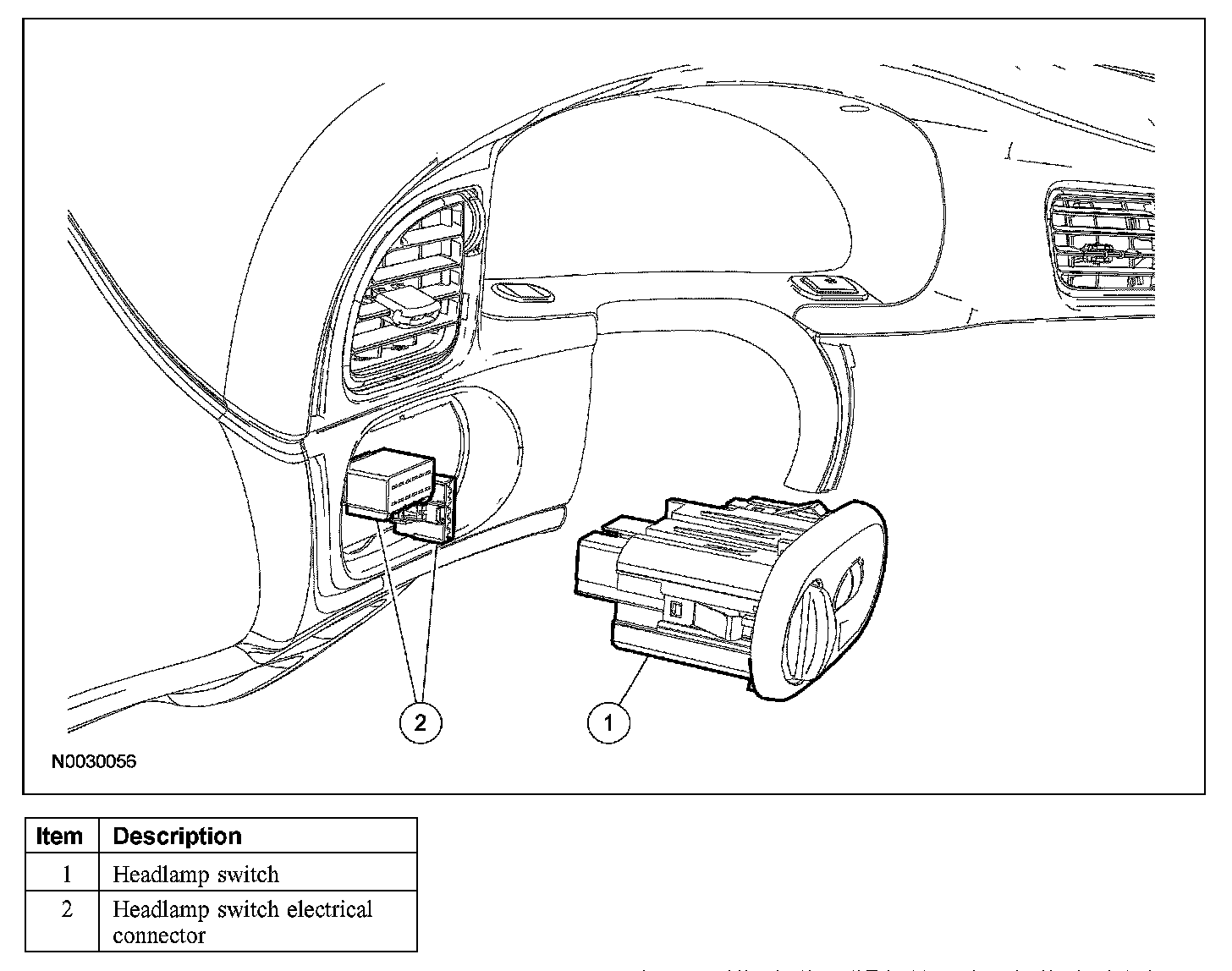

- Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
