Ambient Light Sensor: Service and Repair

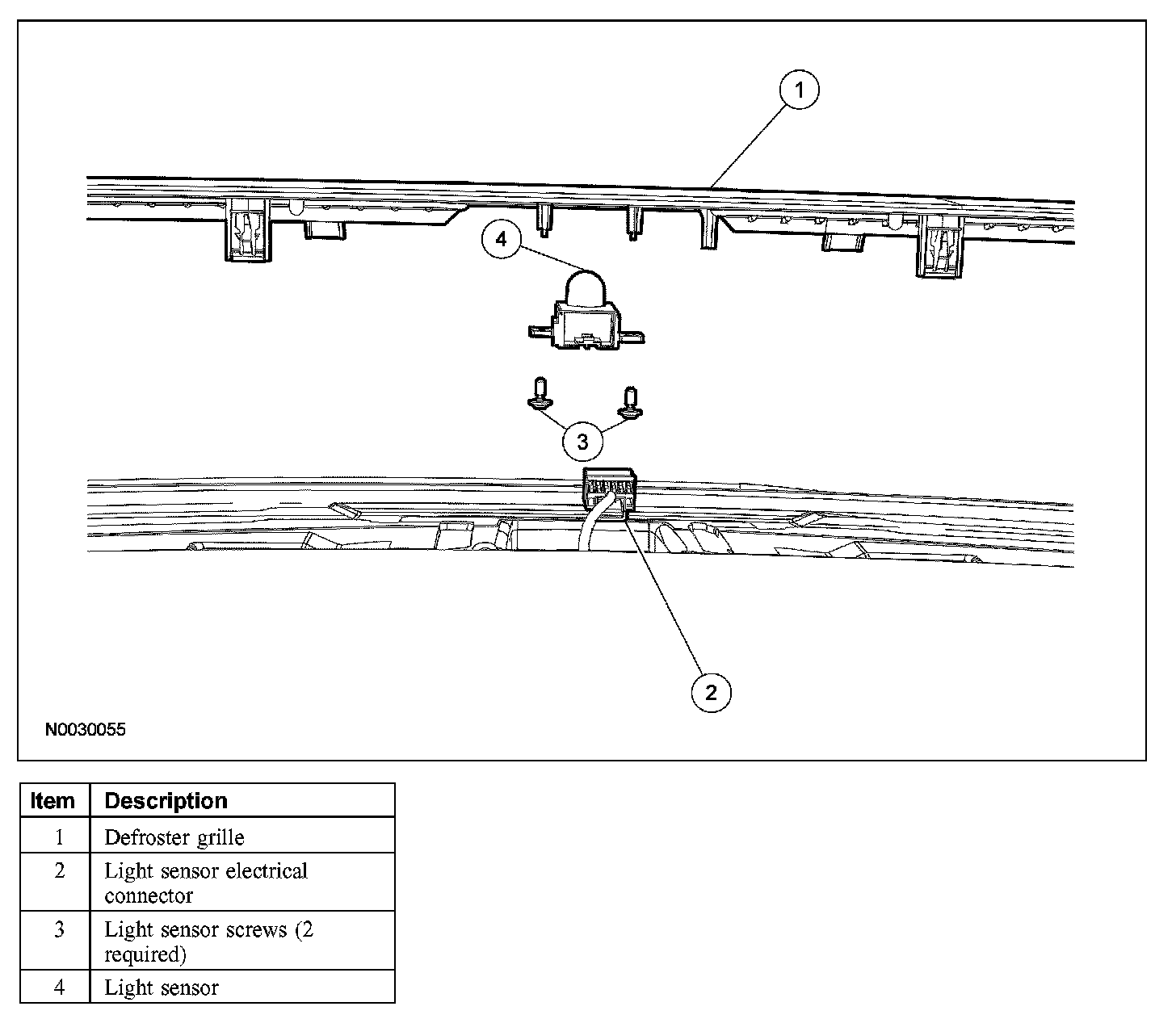

LIGHT SENSOR







Removal and Installation

1. NOTE: Lift upwards on the rear edge of the defroster grille, then slide it rearward to remove.

Remove the defroster grille.
- Disconnect the electrical connector.

2. Remove the 2 screws and the light sensor.
3. To install, reverse the removal procedure.
