Key Reminder Switch: Service and Repair

KEY-IN-IGNITION WARNING SWITCH







Removal and Installation
1. Remove the ignition lock cylinder.

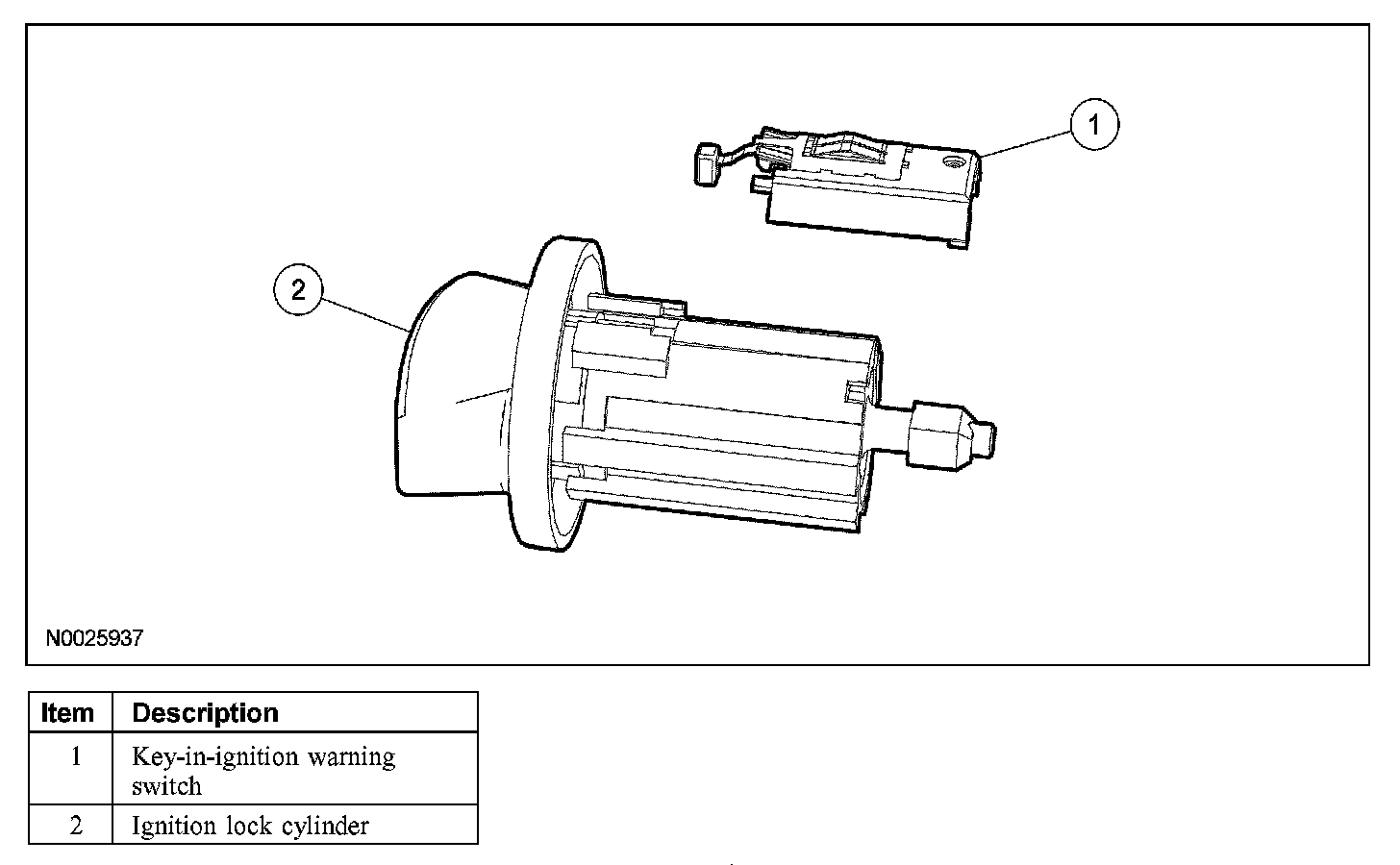

2. Remove the key-in-ignition warning switch.
1 Pry the clip downward.
2 Release the key-in-ignition warning switch from the rear of the ignition lock cylinder.

3. To install, reverse the removal procedure.
