Home >> Ford >> 2006 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Refrigerant Pressure Sensor / Switch >> Locations >> A/C Clutch Cycling Pressure Switch

A/C Clutch Cycling Pressure Switch

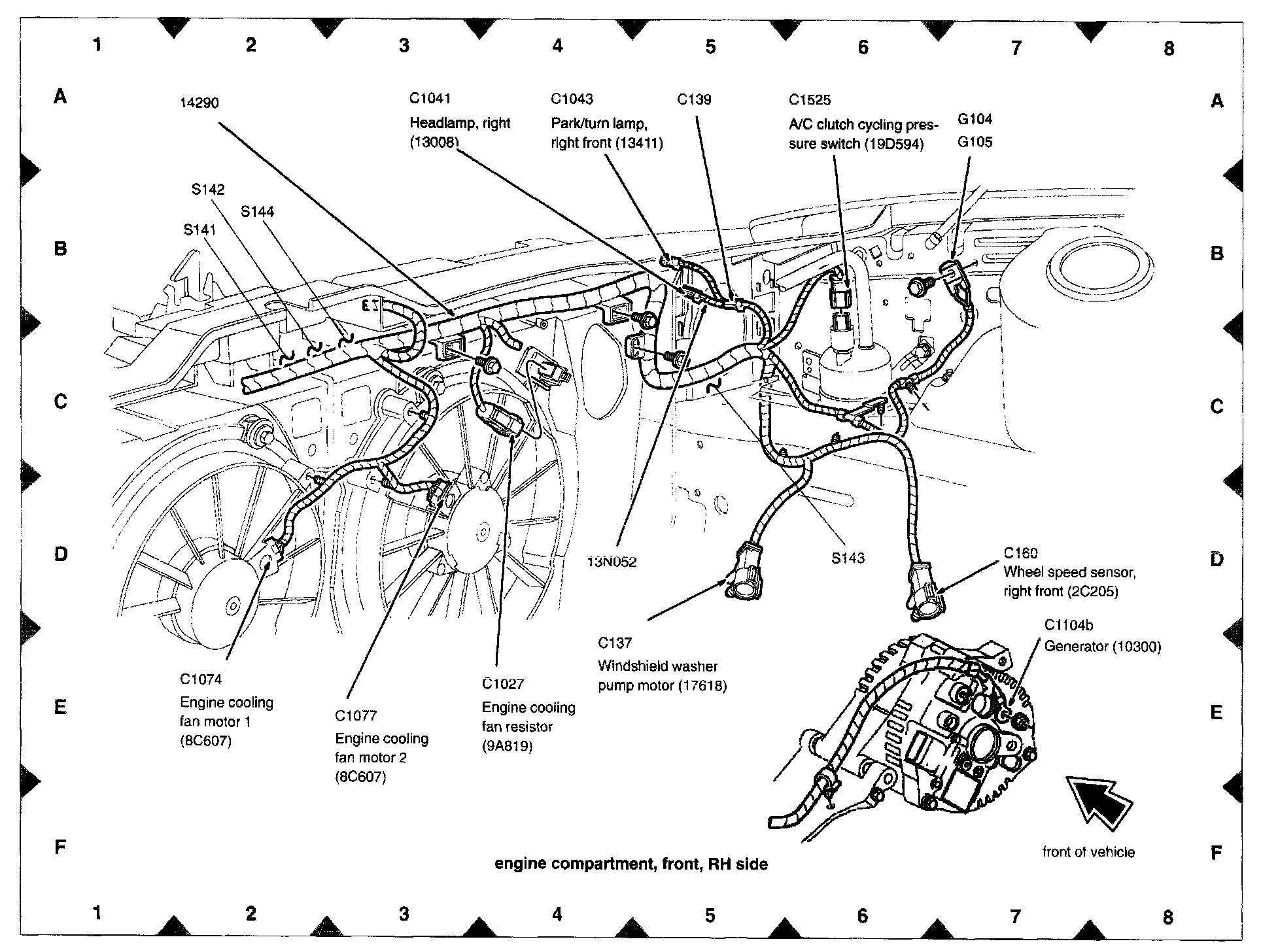

View 151-5 (Engine Compartment, Front, RH Side):
