Cabin Temperature Sensor / Switch: Service and Repair
IN-VEHICLE TEMPERATURE SENSORRemoval and Installation
1. Remove the integrated control panel.

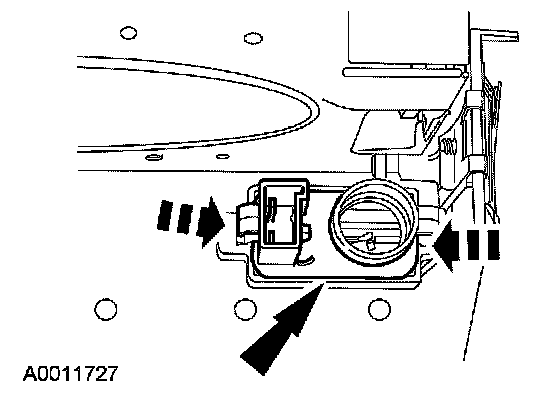

2. While pressing the retaining tabs inward, remove the in-vehicle temperature sensor.
3. To install, reverse the removal procedure.
