Ambient Temperature Sensor / Switch HVAC: Service and Repair
AMBIENT AIR TEMPERATURE SENSORRemoval and Installation

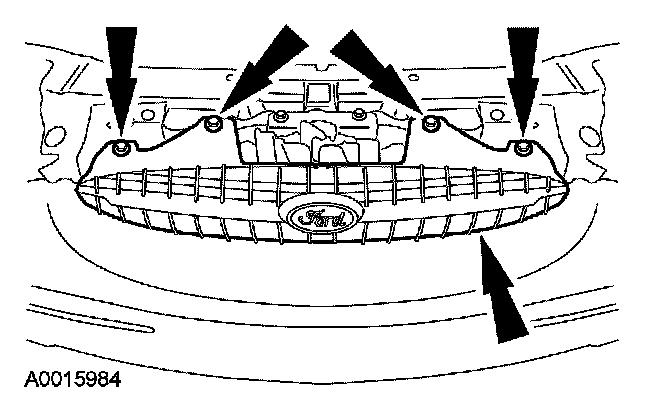

1. Remove the 4 pin-type retainers and the grille.
2. Remove the ambient air temperature sensor.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
