Brake Switch (Cruise Control): Service and Repair

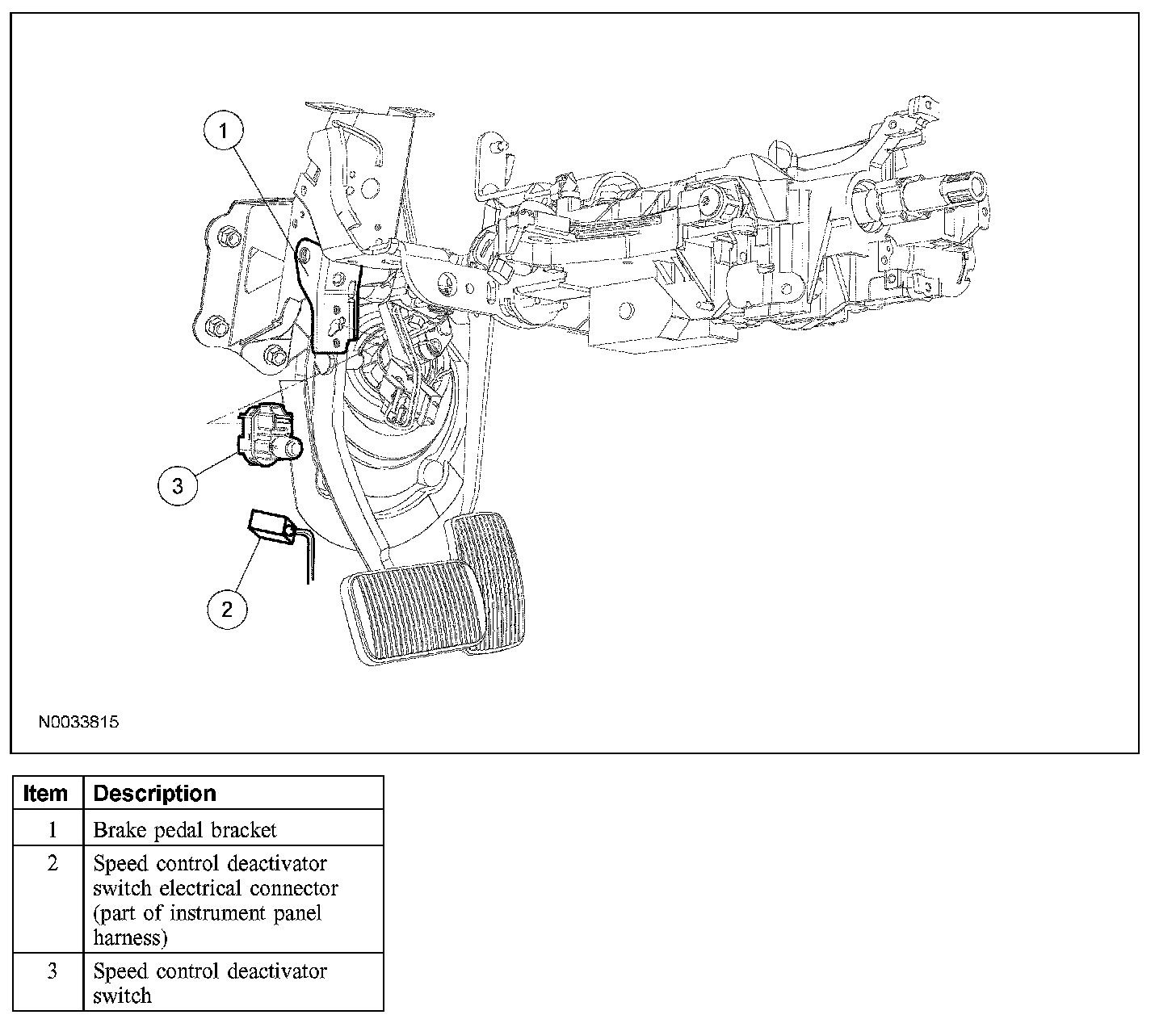

SPEED CONTROL DEACTIVATOR SWITCH







Removal

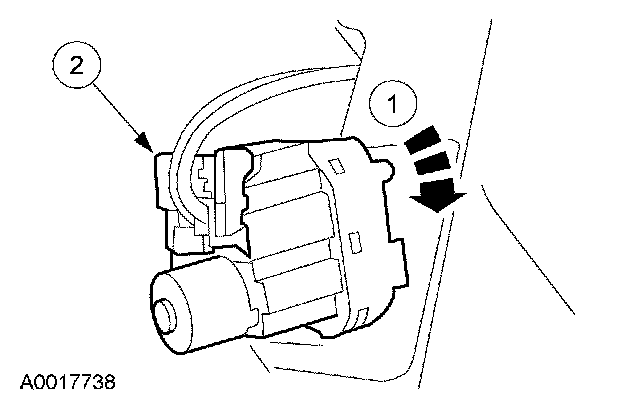

1. Remove the speed control deactivator switch.
1 Disconnect the electrical connector.
2 Rotate the switch counterclockwise 45 degrees and remove the switch.

Installation

All vehicles

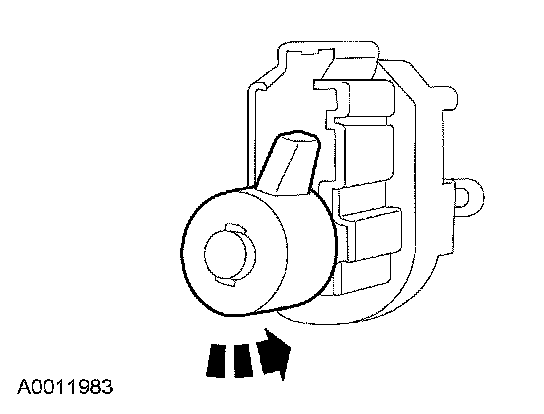

1. Release the plunger lock (if equipped).
- Turn the lock knob counterclockwise until the first click is felt.

2. Fully apply the brake pedal.

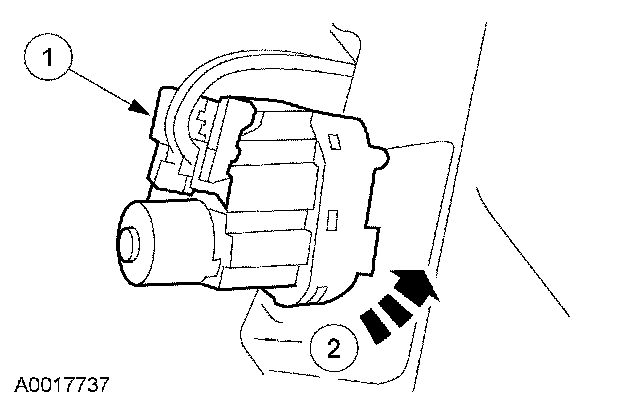

3. Install the speed control deactivator switch.
1 Position the switch in the bracket and rotate it clockwise 45 degrees.
2 Connect the electrical connector.

Vehicles equipped with locking tab

4. NOTE: There should be an extra click heard when tugging on the brake pedal.

Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.
