Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Disconnect the rear wheel speed sensor electrical connector.

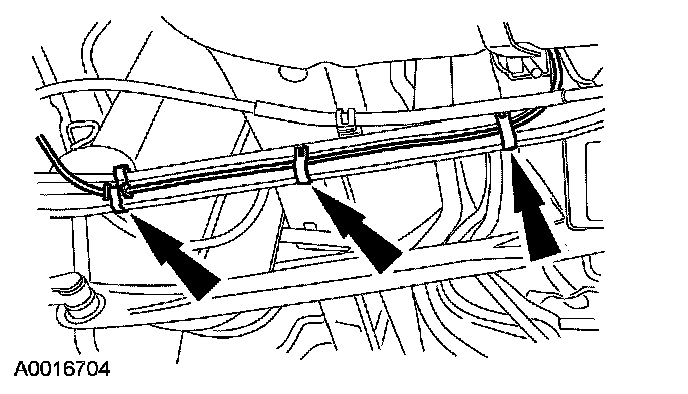

3. Disengage the wiring from the routing clips.

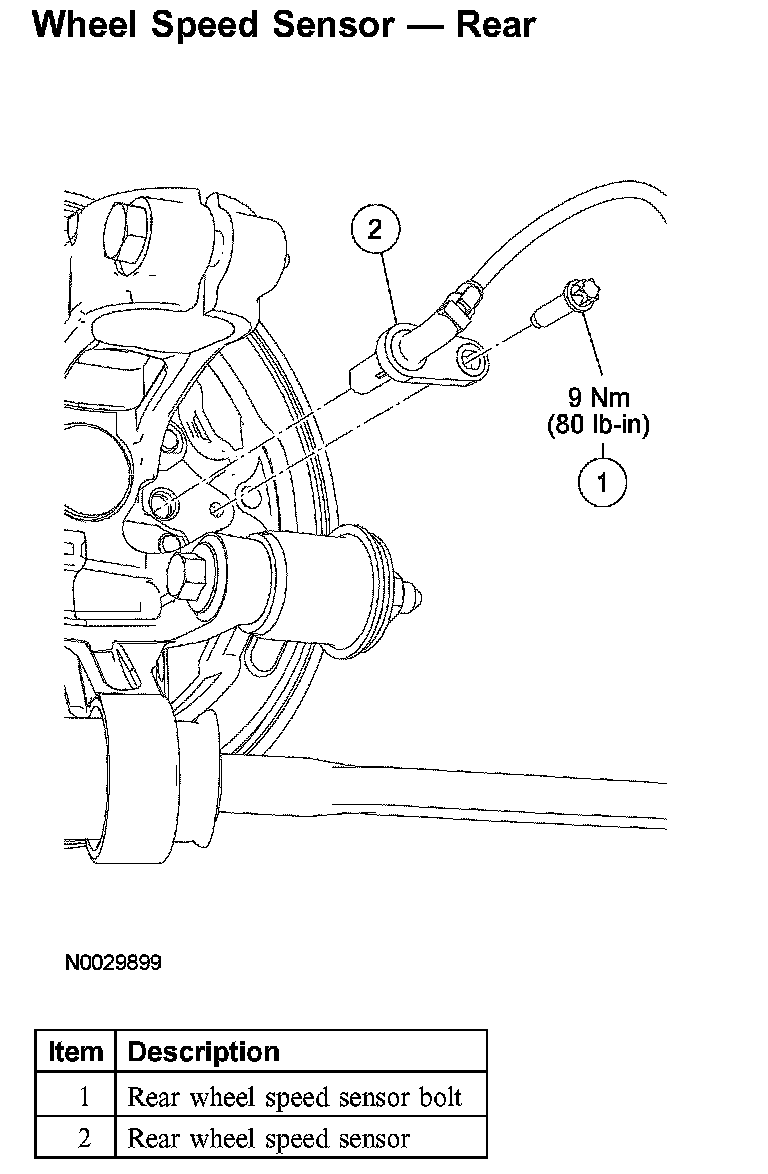

4. Remove the bolt and the rear wheel speed sensor.
^ To install, tighten to 9 Nm (80 inch lbs.).
5. To install, reverse the removal procedure.
