Safety Belt Buckle and Pretensioner

SAFETY BELT BUCKLE AND PRETENSIONER







Removal

WARNING:
- All safety belt assemblies (including retractors, belt tension sensors [BTS] if equipped, buckles, shoulder belt height adjusters, [if so equipped], child safety seat tether attachments and attaching hardware) should be inspected after any collision. All new belt assemblies should be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the (SRS) must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

1. Remove the affected seat and depower the SRS.

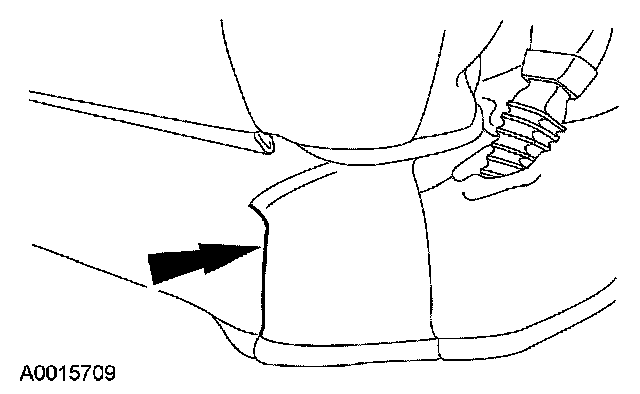

2. Position aside the seat cushion trim cover and release the J-clips.

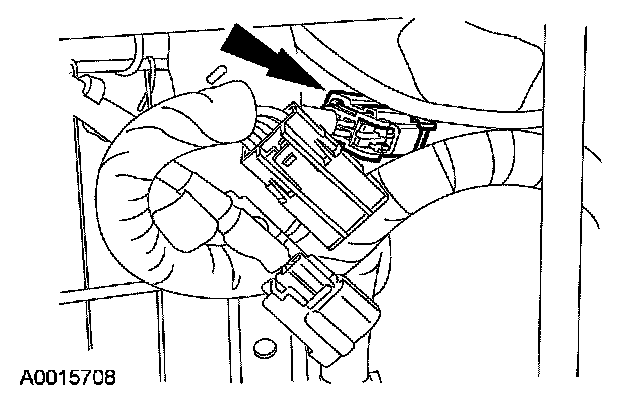

3. Disconnect the safety belt buckle and pretensioner electrical connector.

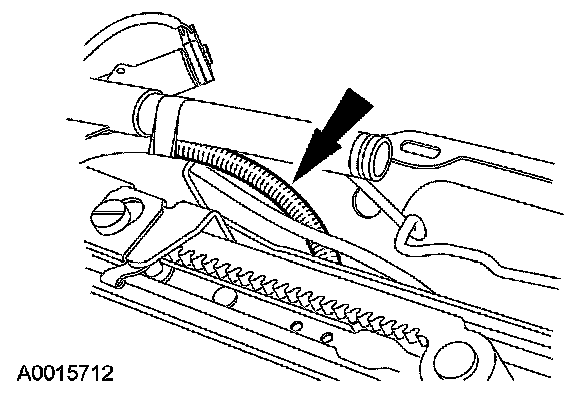

4. Route the safety belt buckle and pretensioner electrical connector and wire harness out from under the seat.

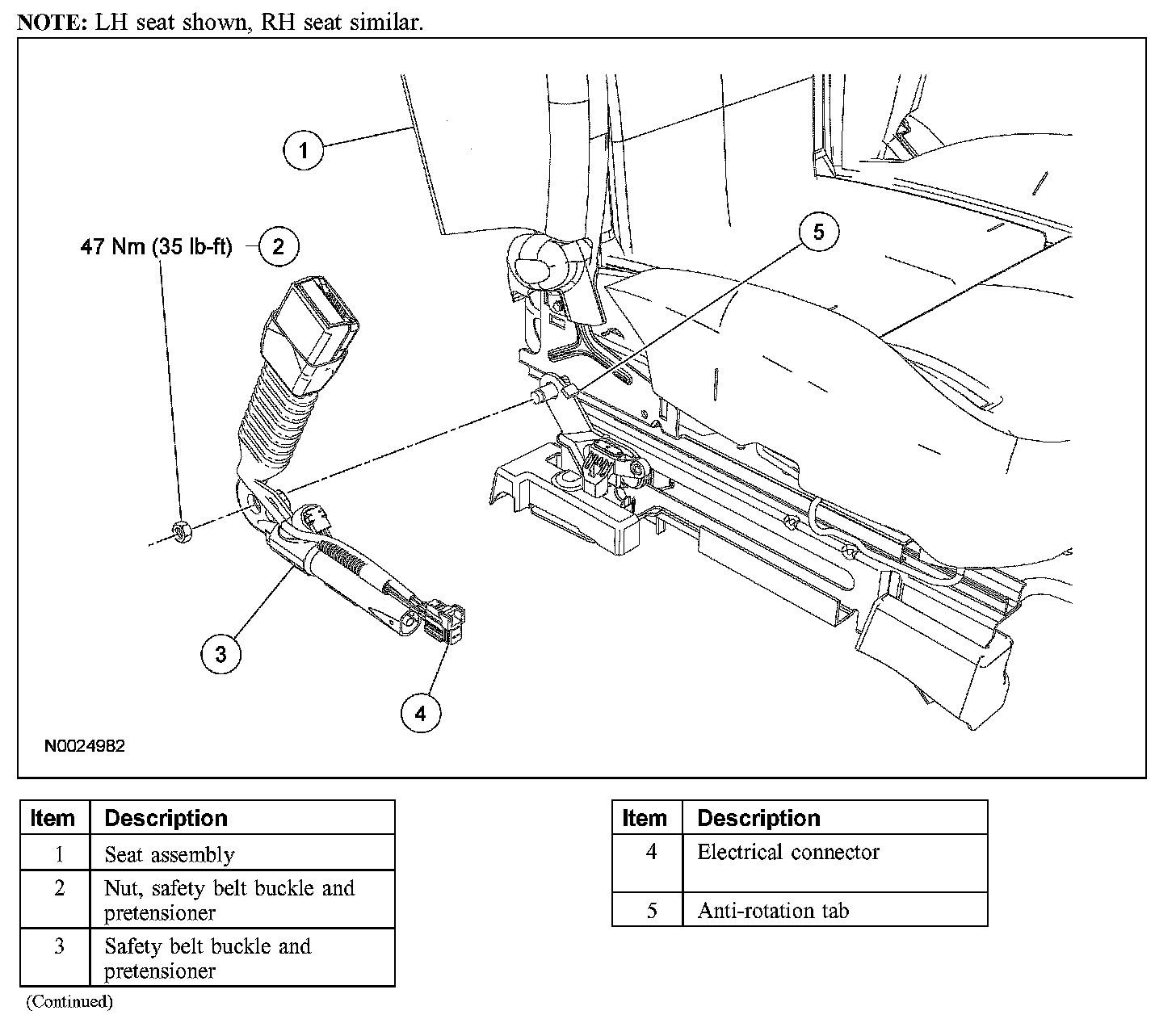

5. Remove the nut and the safety belt buckle and pretensioner.

Installation
1. Install the safety belt buckle and pretensioner.
- Position the safety belt buckle and pretensioner onto the seat track bracket.
- Align the safety belt buckle and pretensioner mounting bracket slot so that the seat track bracket anti-rotation tab goes through it.
- Install the nut.
- Tighten to 47 Nm (35 lb-ft).

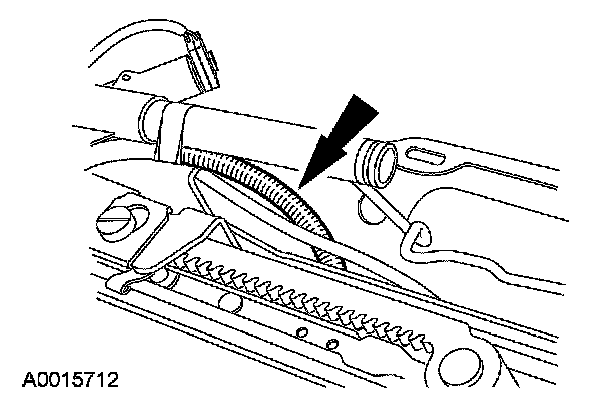

2. Route the safety belt buckle and pretensioner electrical connector and wire harness between the seat cushion frame and the seat track.

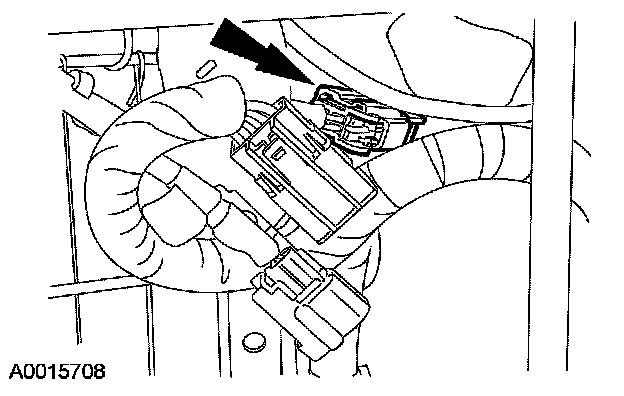

3. Connect the safety belt buckle and pretensioner electrical connector.

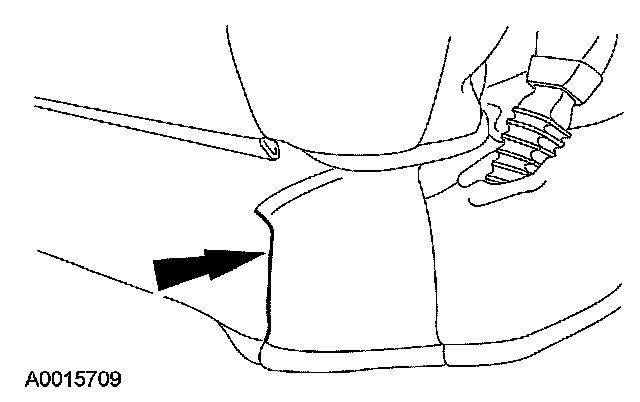

4. Reposition the seat cushion trim attach the J-clips.
5. Install the affected seat in the vehicle and repower the SRS.
6. Check the active restraint system for correct operation.
