Child Safety Seat Tether Anchor - LATCH

CHILD SAFETY SEAT TETHER ANCHOR - LATCH

Removal and Installation

WARNING: All safety belt assemblies (including retractors, belt tension sensors [BTS] if equipped, buckles, shoulder belt height adjusters, [if so equipped], child safety seat tether attachments and attaching hardware) should be inspected after any collision. All new belt assemblies should be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.

NOTE: Driver side shown, others similar.

1. Remove the second row seat cushion.

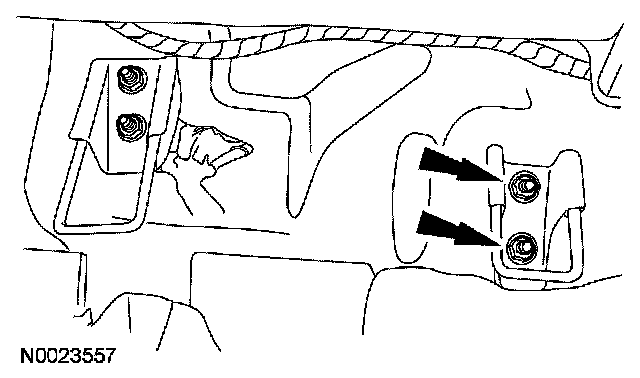

2. Remove the 2 nuts and the affected lower anchors and tethers for children (LATCH) attaching brackets.
- To install, tighten to 28 Nm (21 lb-ft).

3. NOTE: Apply Threadlock 262 to the studs before installing the nuts.

To install, reverse the removal procedure.
