Shift Indicator - A/T: Service and Repair

SELECTOR LEVER INDICATOR BULB







Removal and Installation

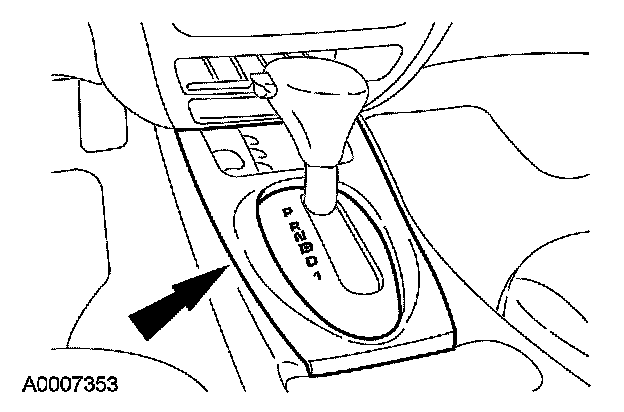

1. Remove the floor console finish panel.

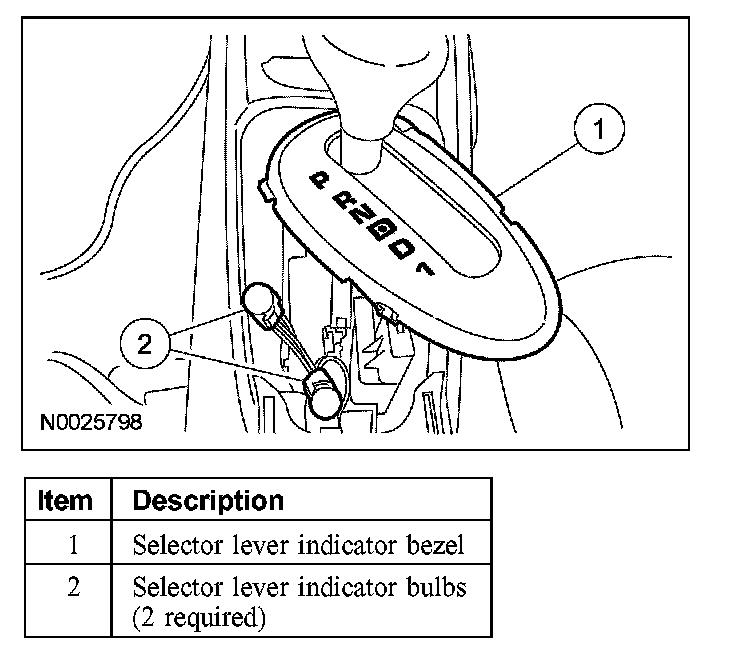

2. Detach the selector lever indicator bezel from the floor console.

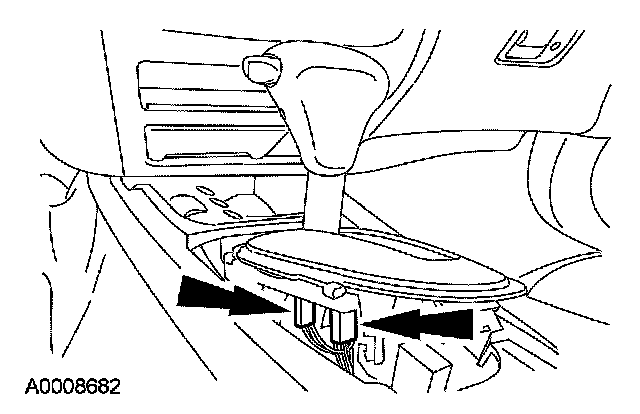

3. Remove the selector lever indicator bulbs and wiring harness connectors from the selector lever indicator bezel.
4. Remove the selector lever indicator bulbs.
5. To install, reverse the removal procedure.
