Accelerator Cable Bracket

ACCELERATOR CABLE BRACKET

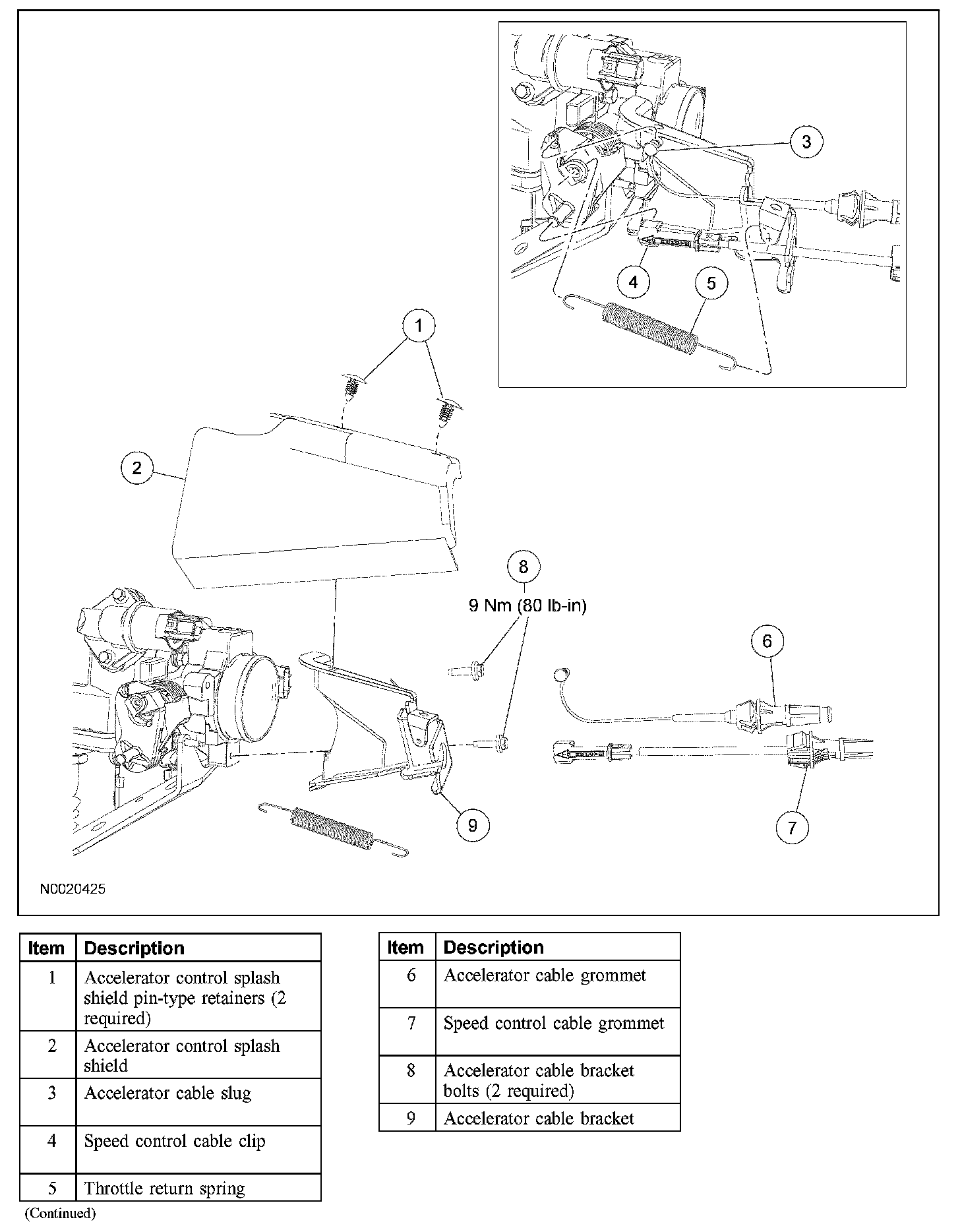

Accelerator Control System Components - Exploded View (Part 1):

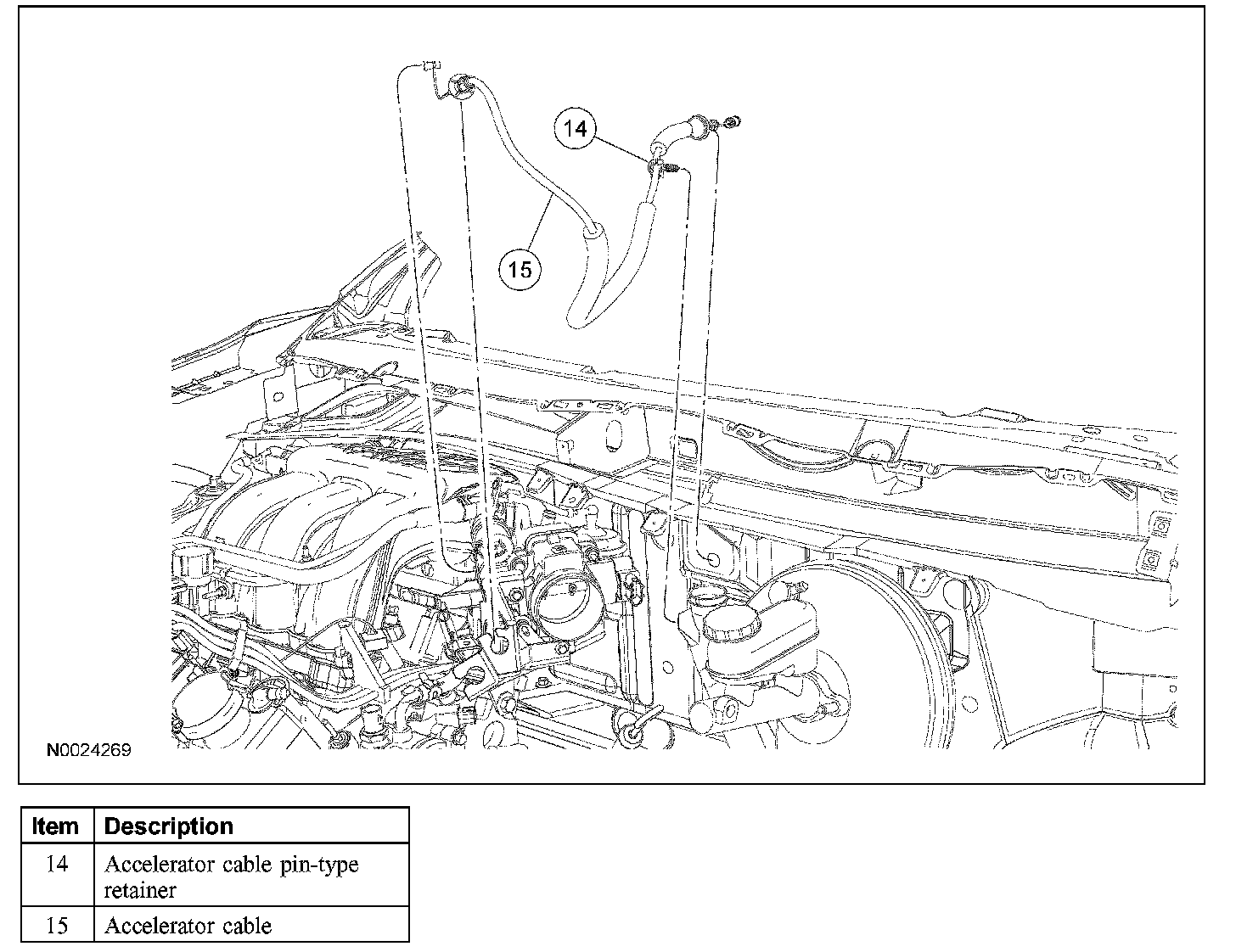

Accelerator Control System Components - Exploded View (Part 2):

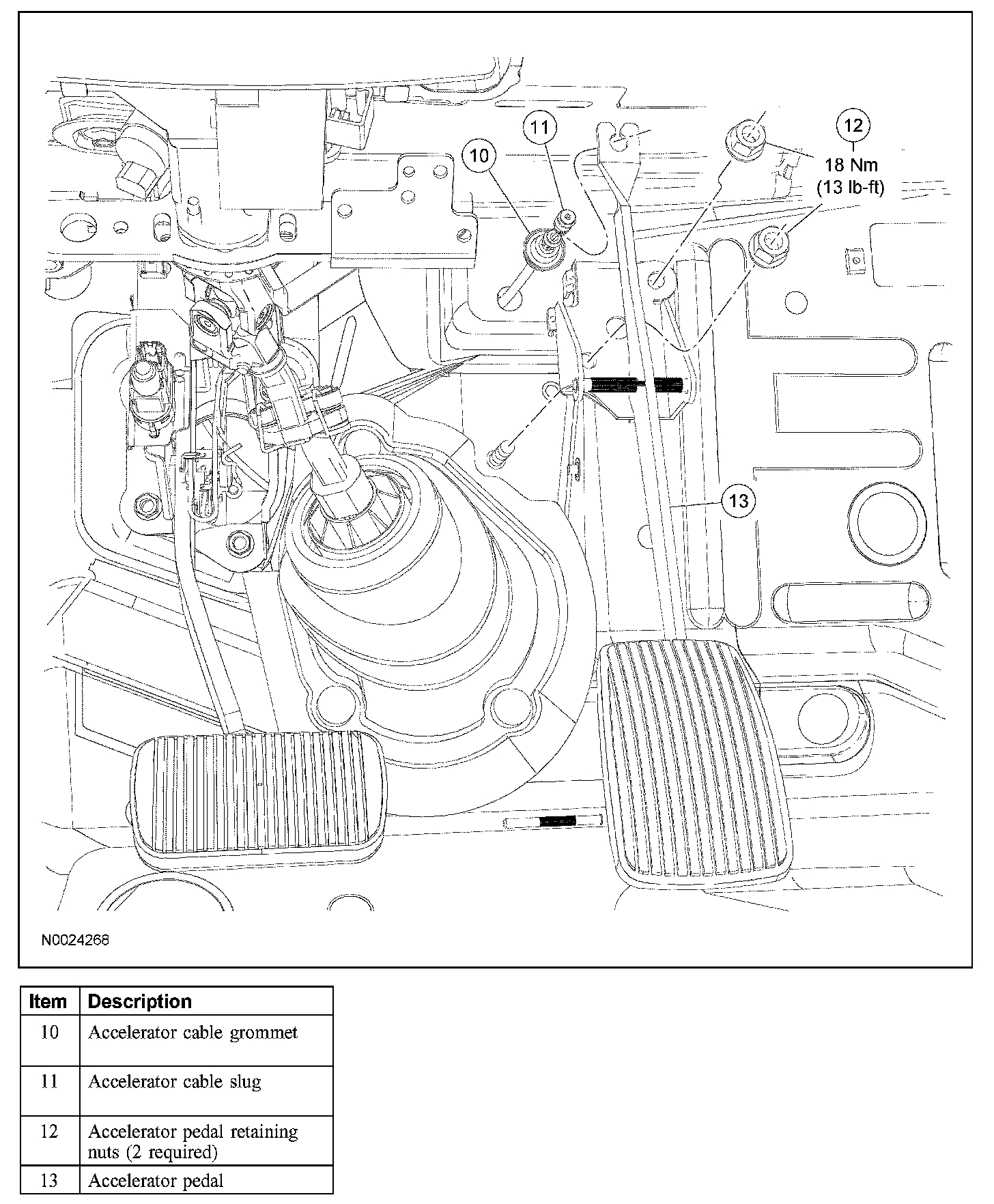

Accelerator Control System Components - Exploded View (Part 3):

Exploded View

Removal and Installation
1. Remove the accelerator control splash shield pin-type retainers and the accelerator control splash shield.
2. Remove the throttle return spring.
3. Disconnect the speed control cable from the throttle cam.
4. Disconnect the accelerator cable from the throttle cam.
5. Depress the tabs and remove the speed control cable from the cable bracket.
6. Depress the tabs and remove the accelerator cable from the cable bracket.
7. Remove the 2 accelerator cable bracket bolts and the accelerator cable bracket.
- To install, tighten to 9 Nm (80 lb-in).

8. To install, reverse the removal procedure.
