Accelerator Cable

ACCELERATOR CABLE

Accelerator Control System Components - Exploded View (Part 1):

Accelerator Control System Components - Exploded View (Part 2):

Accelerator Control System Components - Exploded View (Part 3):

Exploded View

Removal and Installation
1. Position the accelerator pedal to relieve tension on the accelerator cable.

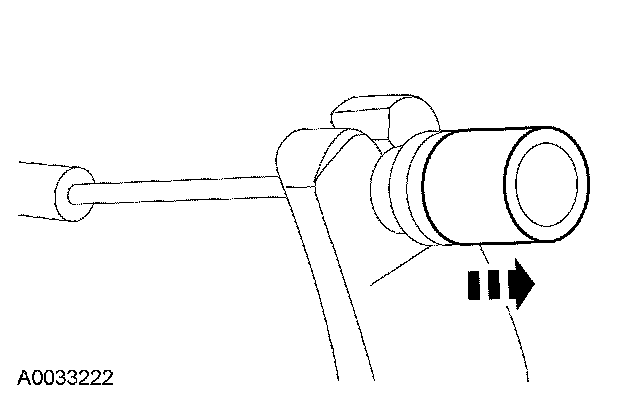

2. Remove the accelerator cable from the rubber plunger.

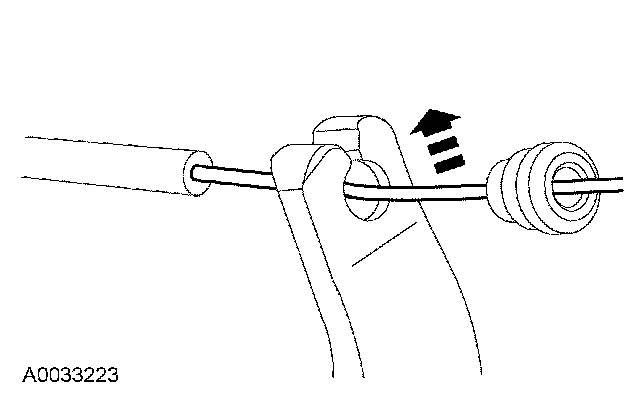

3. Position the plunger rearward and remove the accelerator cable from the accelerator pedal.
4. Remove the 2 pin-type retainers and the accelerator control splash shield.
5. Position the throttle cam to wide open throttle (WOT) position and remove the accelerator cable slug from the throttle cam.
6. Depress the accelerator cable tabs and remove the accelerator cable from the accelerator cable bracket.
7. Release the accelerator cable pin-type retainer.
8. Cut the retaining tie-strap.

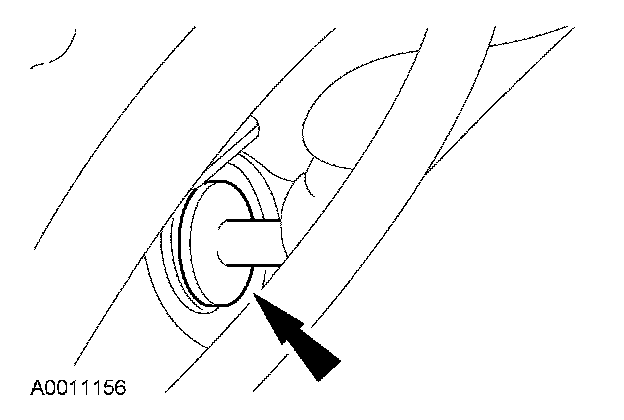

9. Remove the accelerator cable grommet from the bulkhead and remove the accelerator cable.
10. To install, reverse the removal procedure.
