Accelerator Pedal: Service and Repair
ACCELERATOR PEDALAccelerator Control System Components - Exploded View (Part 1):
Accelerator Control System Components - Exploded View (Part 2):
Accelerator Control System Components - Exploded View (Part 3):
Exploded View
Removal and Installation
1. Position the accelerator pedal to relieve tension on the accelerator cable.

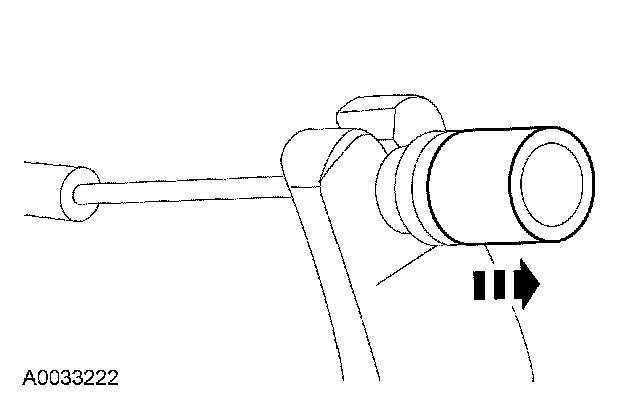

2. Remove the accelerator cable from the rubber plunger.

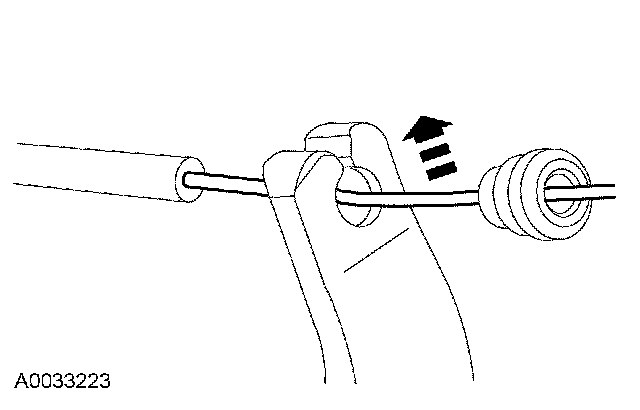

3. Position the plunger rearward and remove the accelerator cable from the accelerator pedal.
4. Remove the 2 accelerator pedal retaining nuts.
- To install, tighten to 18 Nm (13 lb-ft).
5. Remove the accelerator pedal assembly.
6. To install, reverse the removal procedure.
