Evaporative System Service Port: Service and Repair

EVAPORATIVE EMISSION TEST PORT

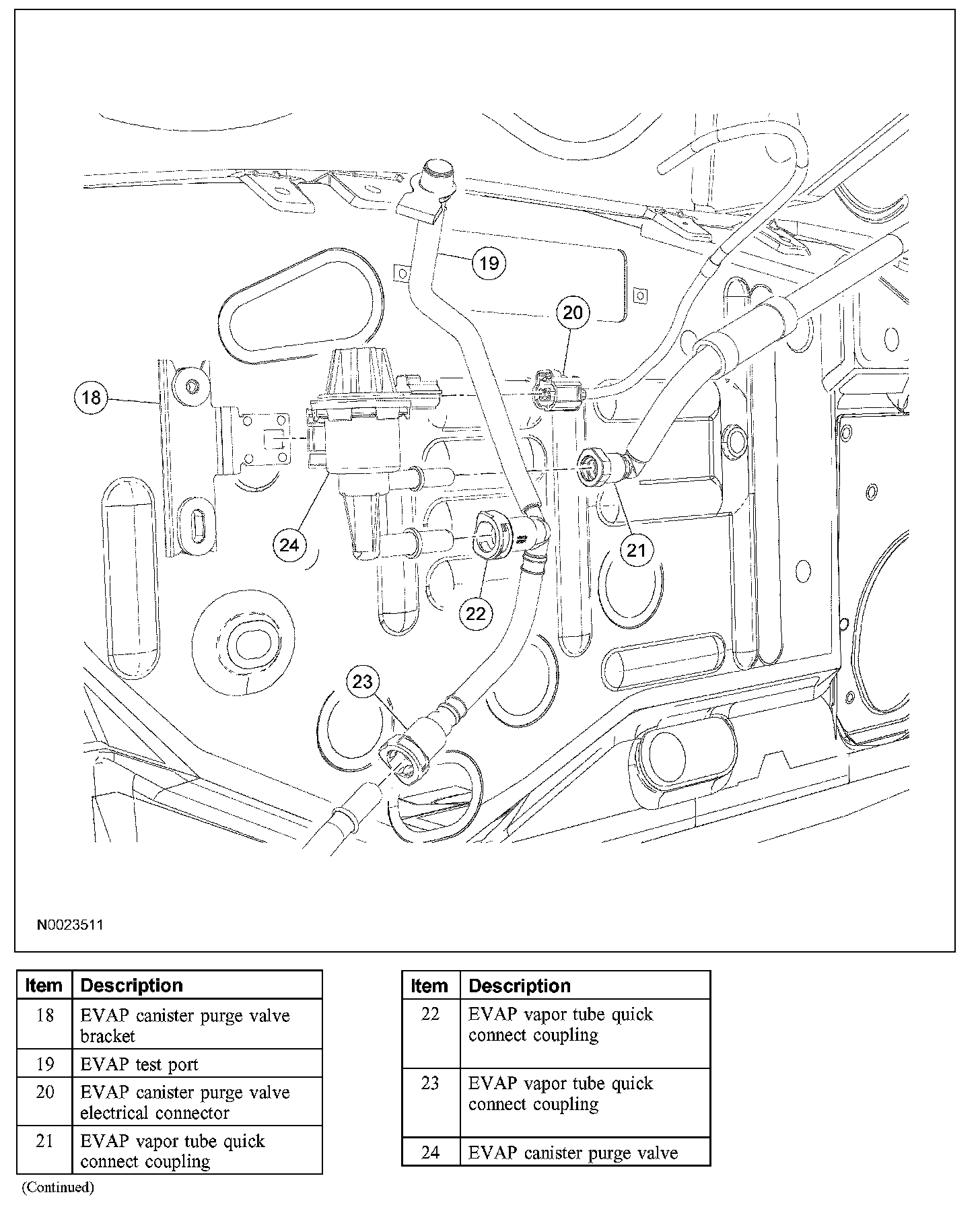

Evaporative Emission (EVAP) System Components - Exploded View (Part 1):

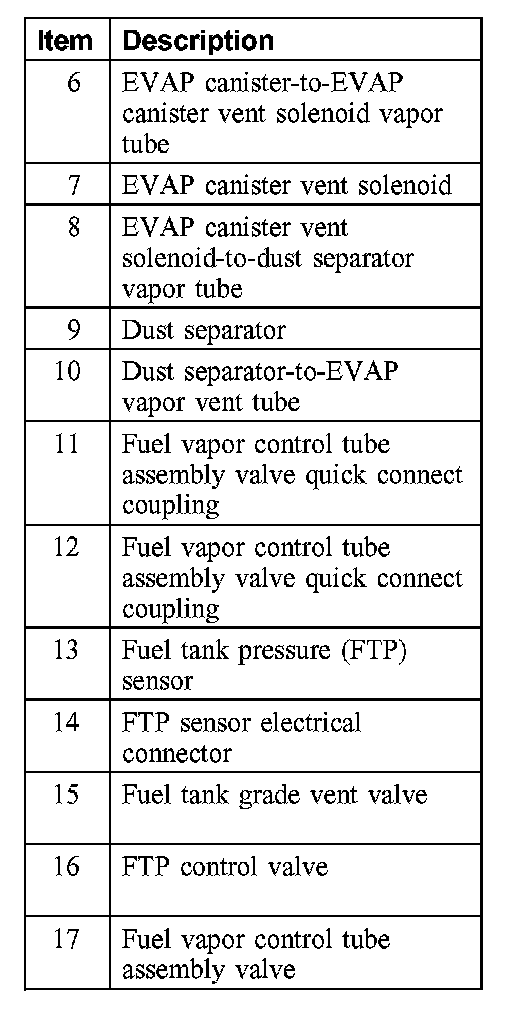

Evaporative Emission (EVAP) System Components - Exploded View (Part 2):

Evaporative Emission (EVAP) System Components - Exploded View (Part 3):

Exploded View

Removal and Installation

WARNING:
- The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or fuel liquid is present in the area. Failure to follow these instructions may result in personal injury.
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable liquids are always present and may be ignited, resulting in possible personal injury. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are present and may be ignited. Failure to follow these instructions can result in personal injuries.

1. Disconnect the evaporative emission (EVAP) vapor tube quick connect coupling from the EVAP canister purge valve.
2. Disconnect the EVAP vapor tube quick connect coupling from the rear vapor tube.
3. Remove the EVAP test port.
4. To install, reverse the removal procedure.
- Test the evaporative emissions system for leaks.
- Carry out the evaporative emissions repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
