Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE

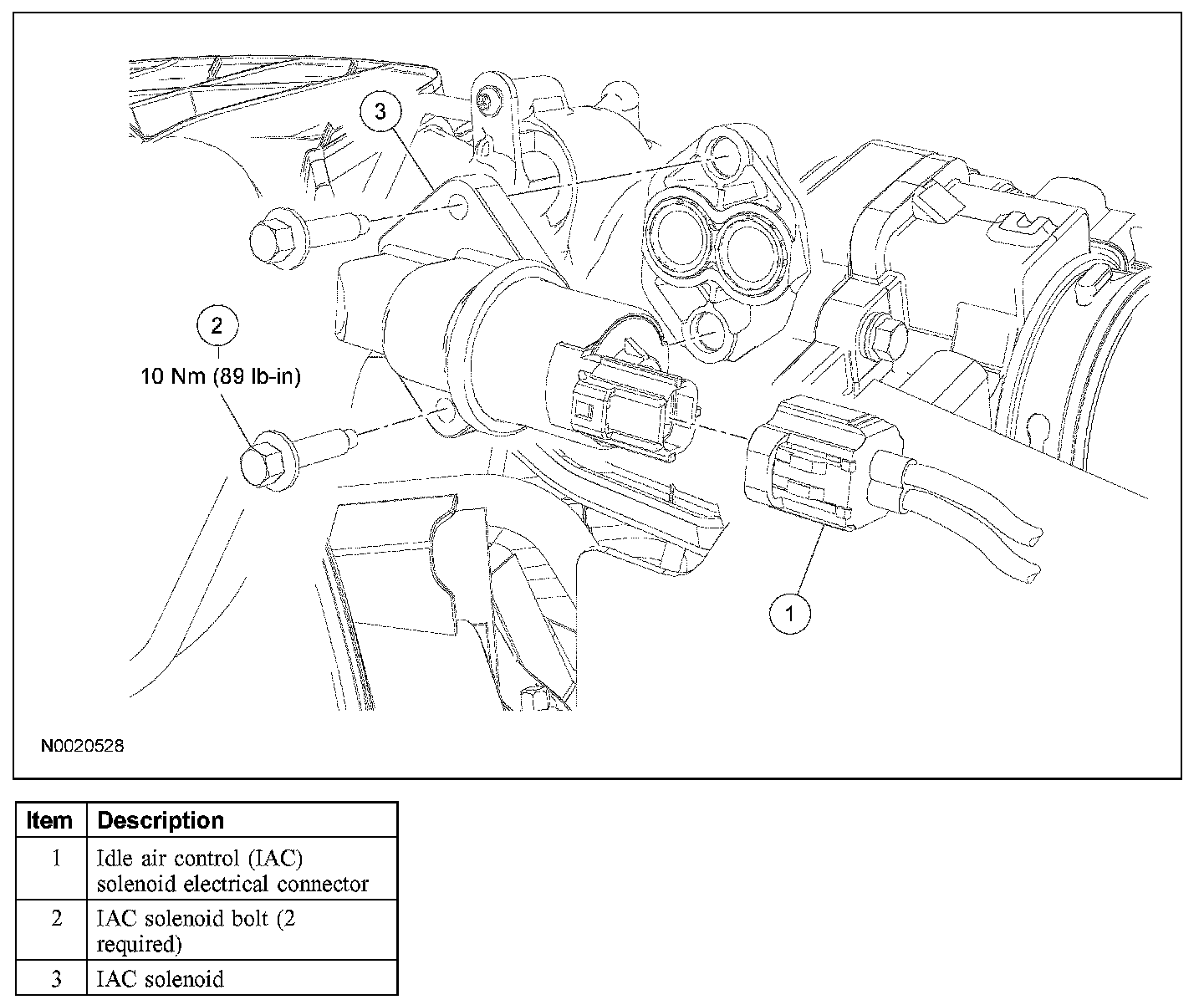

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the idle air control (IAC) solenoid electrical connector.
3. Remove the 2 bolts and the IAC solenoid.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
