Tail Lamp: Service and Repair

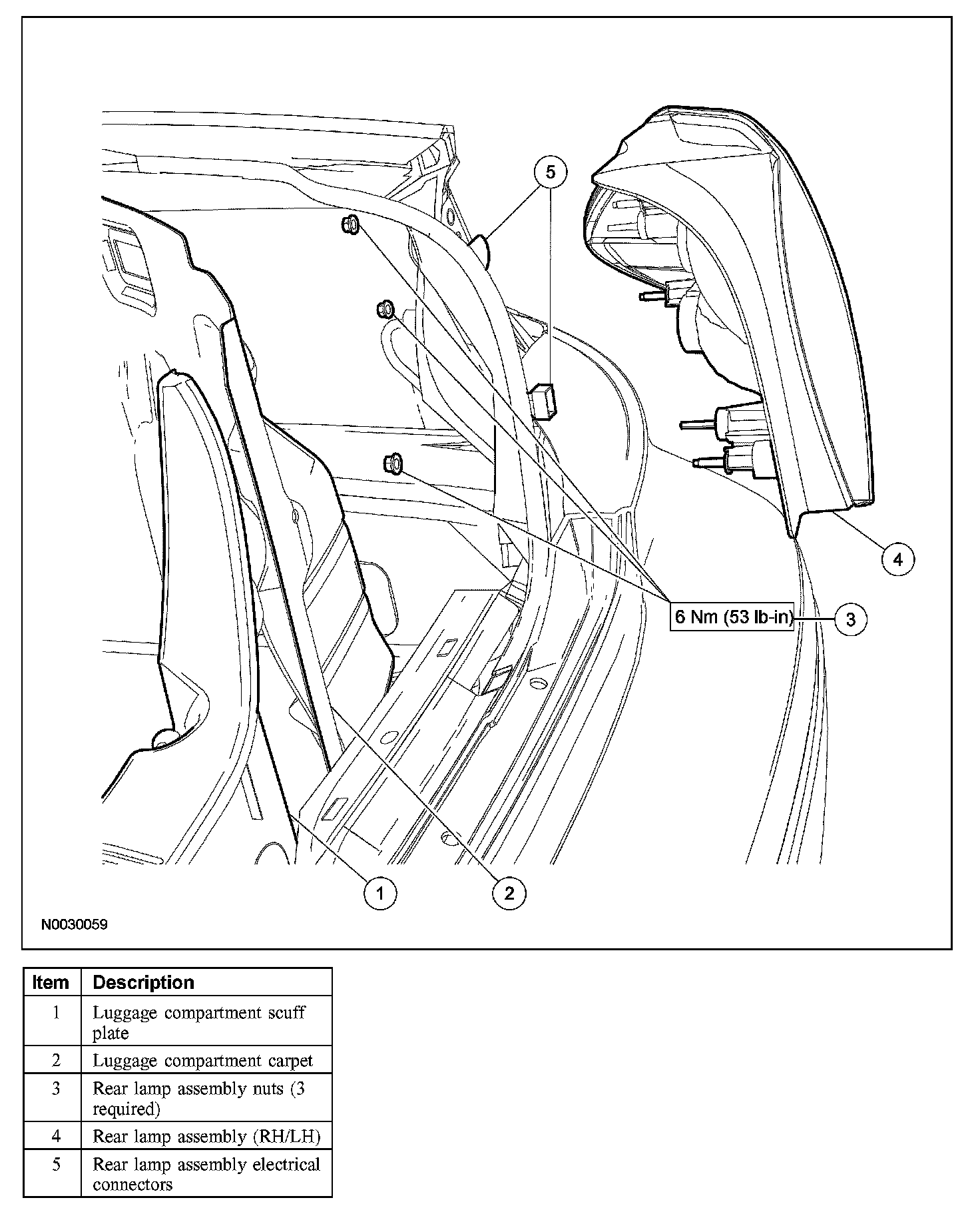

REAR LAMP ASSEMBLY







Removal and Installation
1. Remove the luggage compartment scuff plate.
2. Position the luggage compartment carpet aside.
3. Remove the 3 nuts and the rear lamp assembly.
- Disconnect the electrical connectors.
- To install, tighten to 6 Nm (53 lb-in).

4. To install, reverse the removal procedure.
