Horn: Service and Repair

HORN

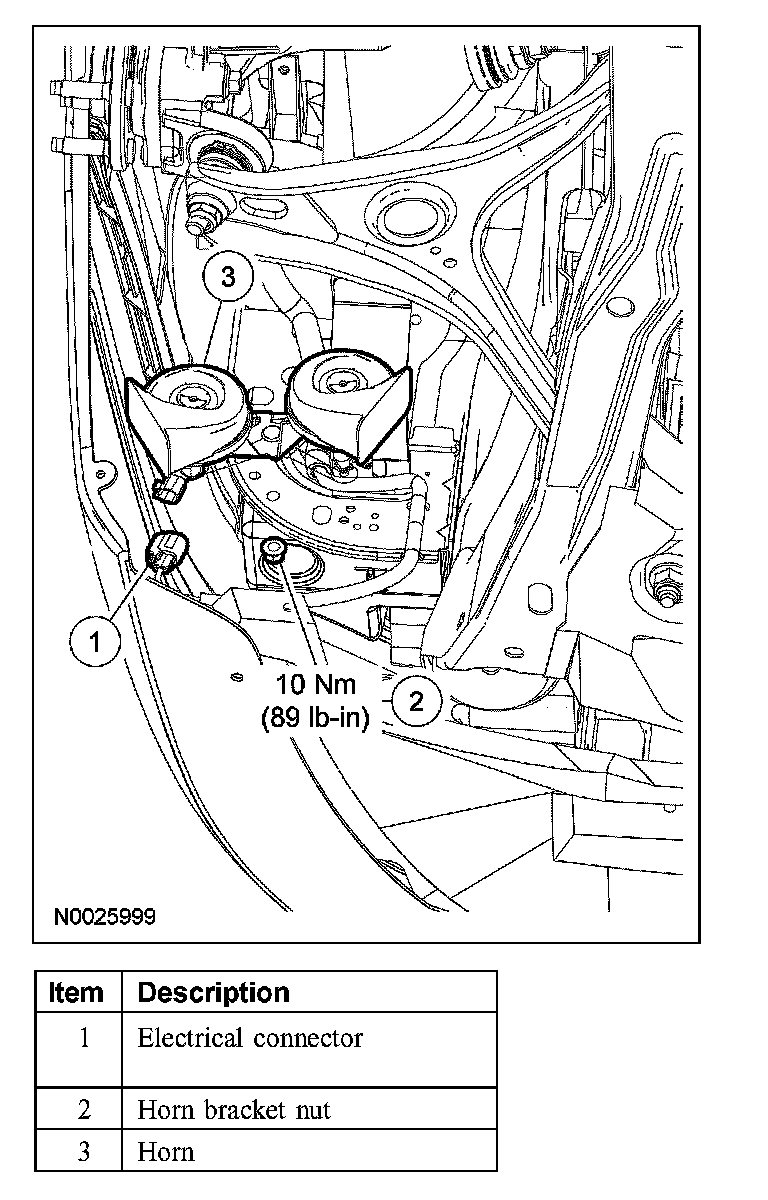

Removal and Installation
1. Disconnect the electrical connector.

2. NOTE: The new horn is installed as an assembly.

Remove the horn bracket nut and the horn.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
