Door Ajar Switch - Rear Door

DOOR AJAR SWITCH - REAR DOOR

Removal and Installation
1. Remove the rear door latch.







2. Remove the door ajar switch.

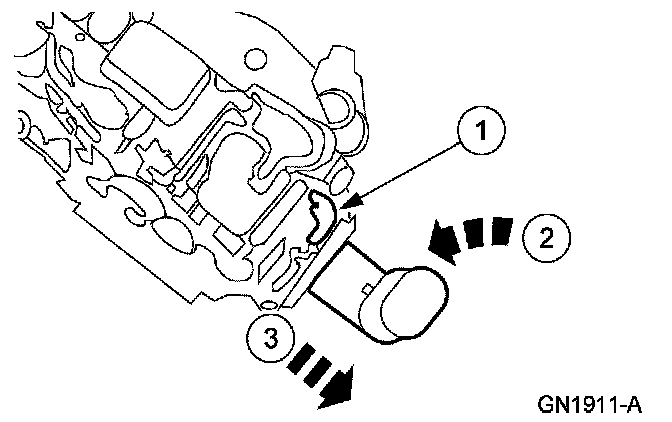

1 Lift the locking tab.
2 Rotate the door ajar switch counterclockwise.
3 Remove the door ajar switch.

3. To install, reverse the removal procedure.
