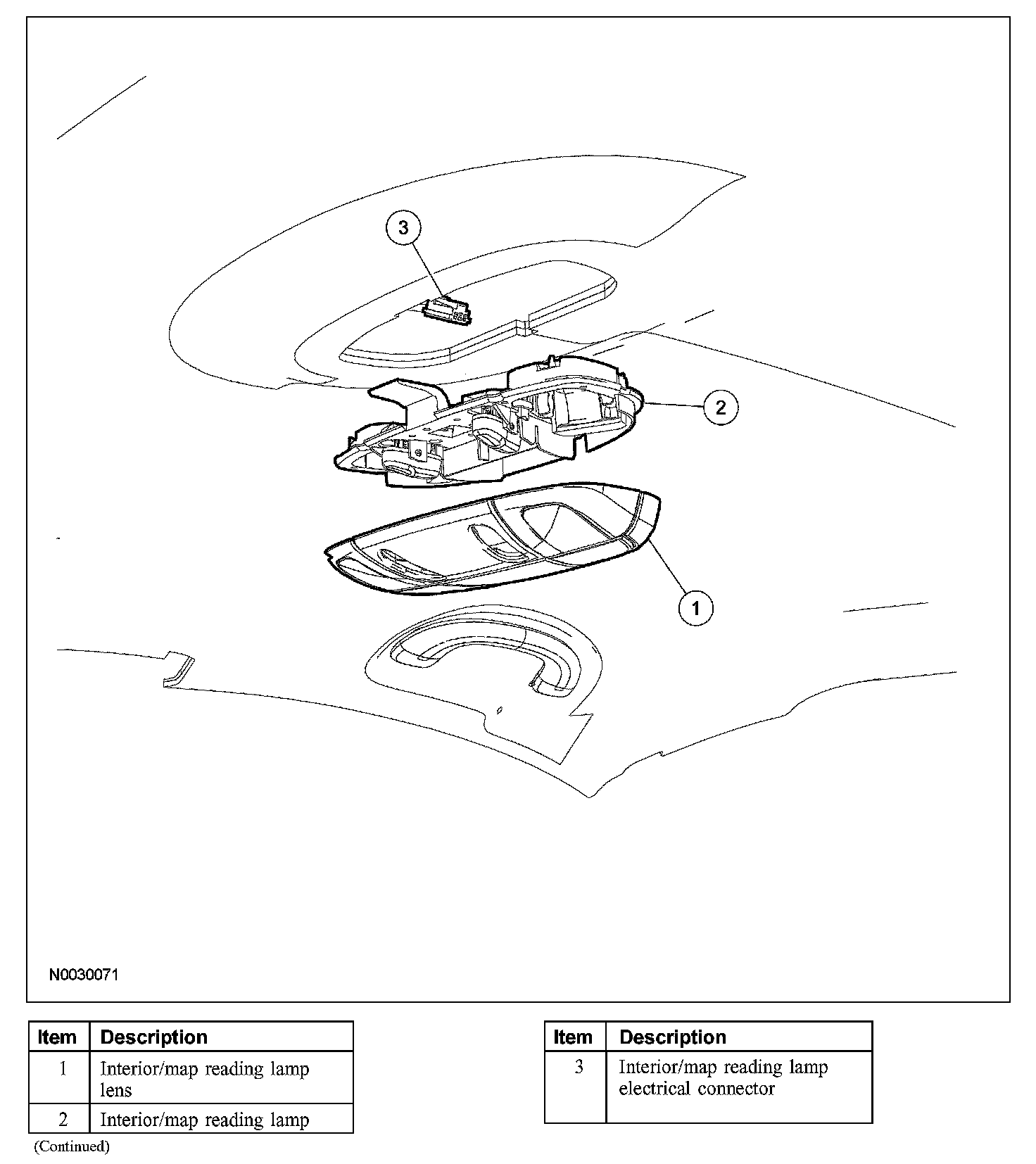

Interior/Map Reading Lamp - Without Roof Opening Panel

INTERIOR/MAP READING LAMP - WITHOUT ROOF OPENING PANEL







Removal and Installation

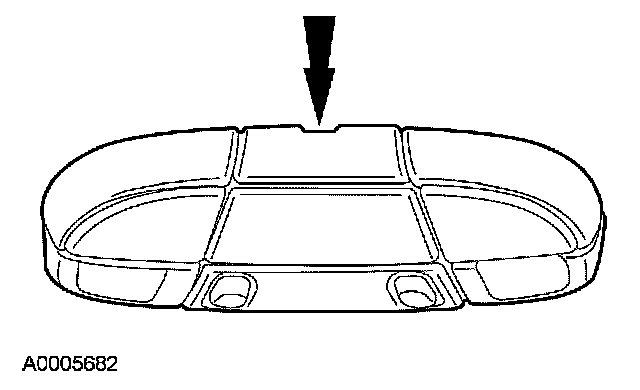

1. Remove the interior/map reading lamp lens.

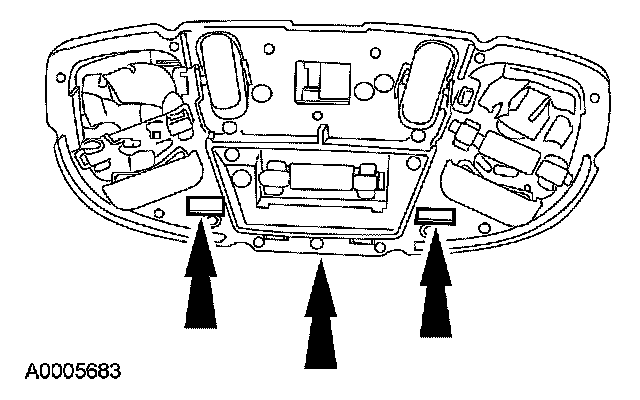

2. Release the 2 retaining clips (through the access holes) and remove the interior/map reading lamp assembly.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
