Interior/Map Reading Lamp - With Roof Opening Panel

INTERIOR/MAP READING LAMP - WITH ROOF OPENING PANEL

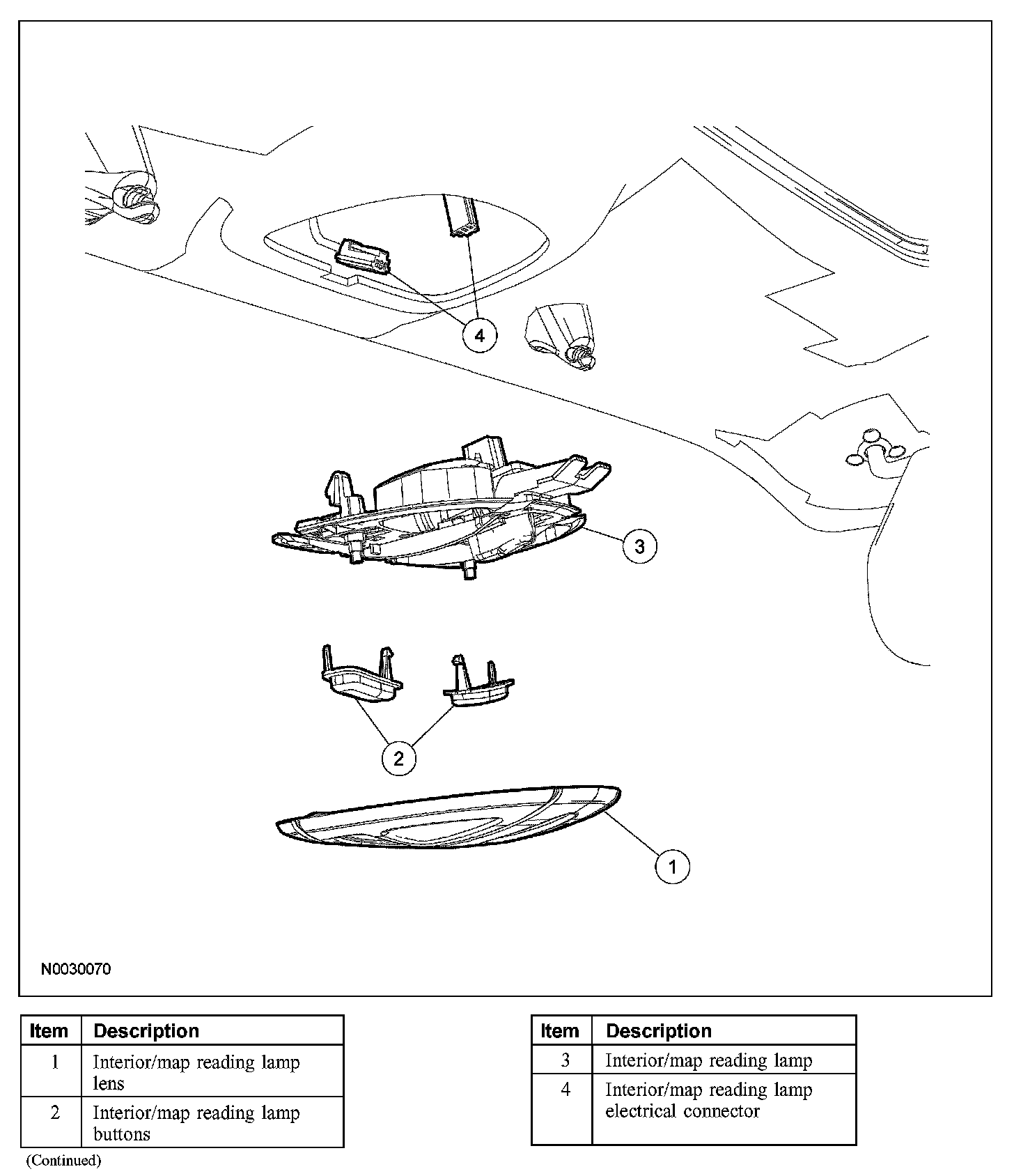

Removal and Installation

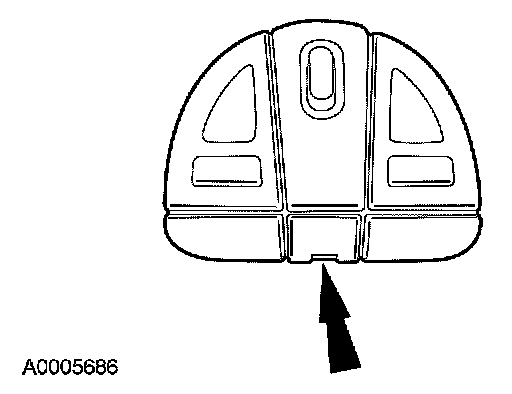

1. Remove the interior/map reading lamp lens.

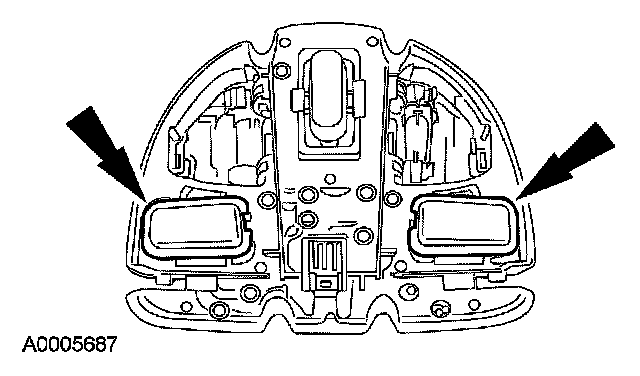

2. Remove the map lamp buttons.

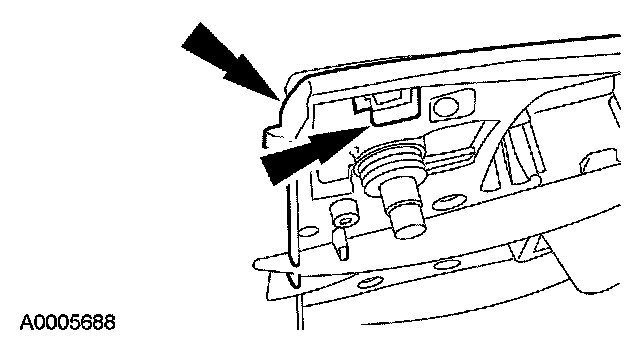

3. Release the 2 retaining clips (through the access holes) and remove the interior/map reading lamp assembly.
- Disconnect the electrical connectors.

4. To install, reverse the removal procedure
