Interior Lamp

INTERIOR LAMP







Removal and Installation

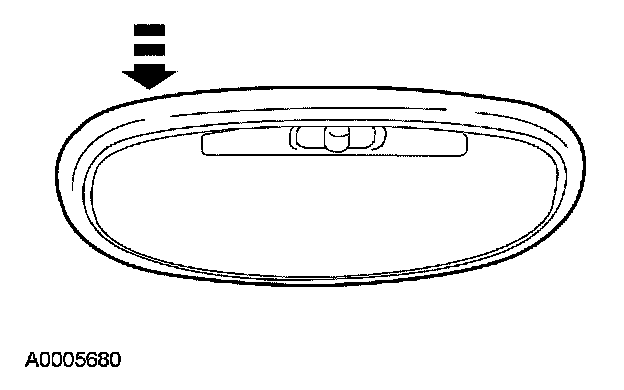

1. Remove the interior lamp lens.
- Release the lens from the switch side first.

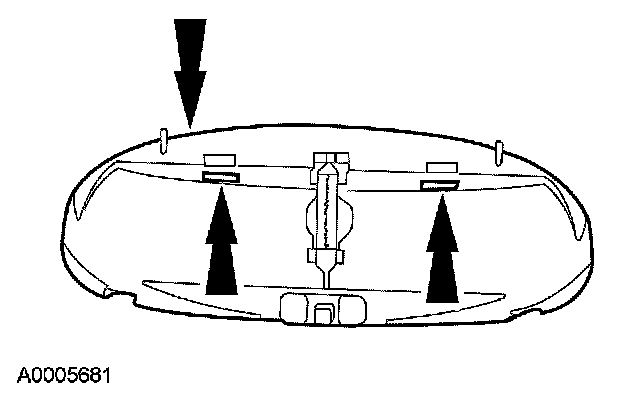

2. Release the 2 clips and remove the interior lamp assembly.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
