High Mounted Stoplamp - Parcel Mounted

HIGH MOUNTED STOPLAMP - PARCEL MOUNTED







Removal and Installation

CAUTION: Take care not to damage the rear parcel shelf or the high mounted stoplamp.







1. Disengage the high mounted stoplamp from the parcel shelf.
1 Insert 2 thin bladed 20 mm (0.8 inches) wide tools approximately 60 mm (2.4 in) from the outside edges of the high mounted stoplamp and push rearward to disengage the snaps.
2 Lift the front of the high mounted stoplamp from the parcel shelf.

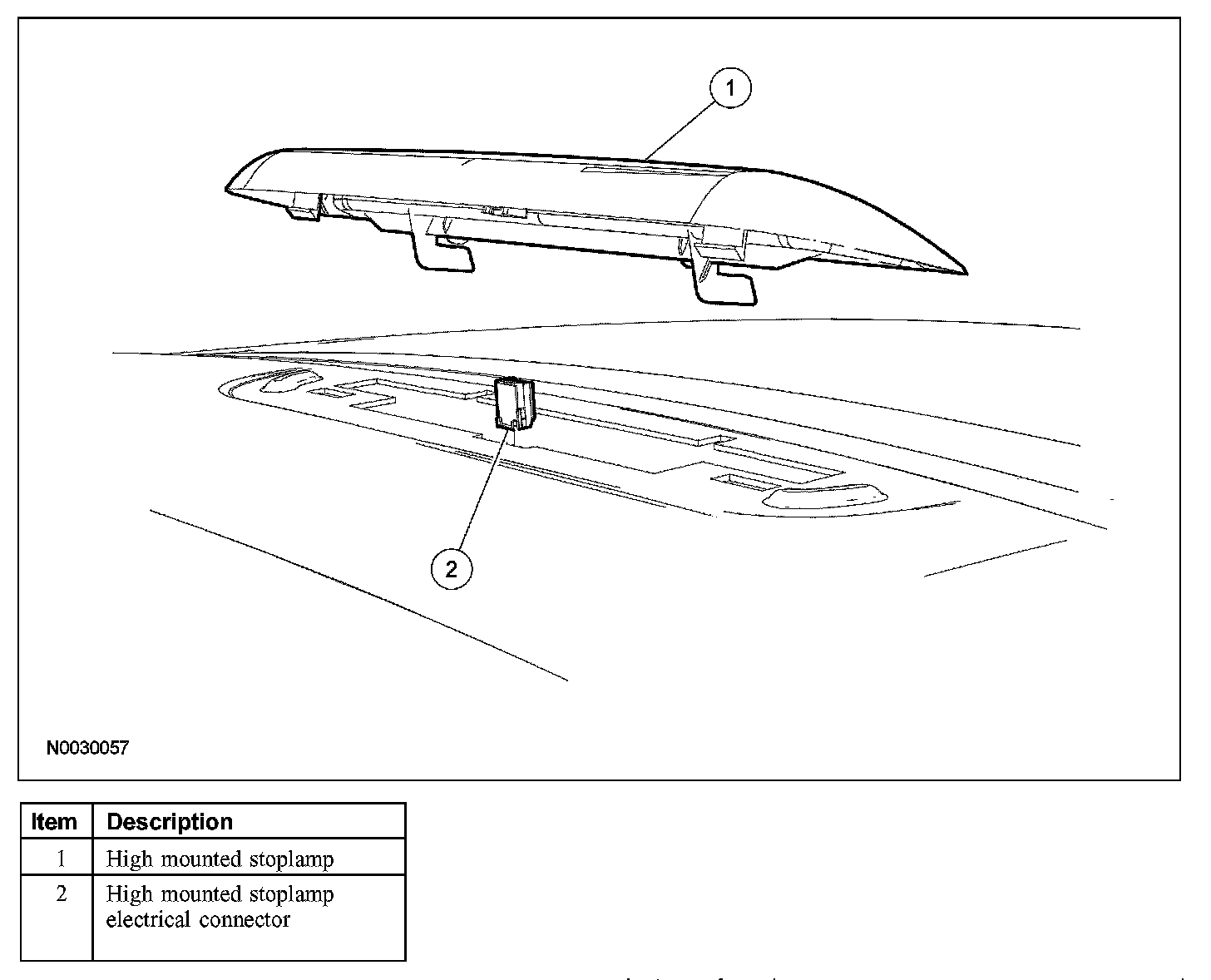

2. Remove the high mounted stoplamp.
- Disconnect the electrical connector and pull the high mounted stoplamp forward.

3. To install, reverse the removal procedure.
