Test Q: The High Beam Indicator Is Never on

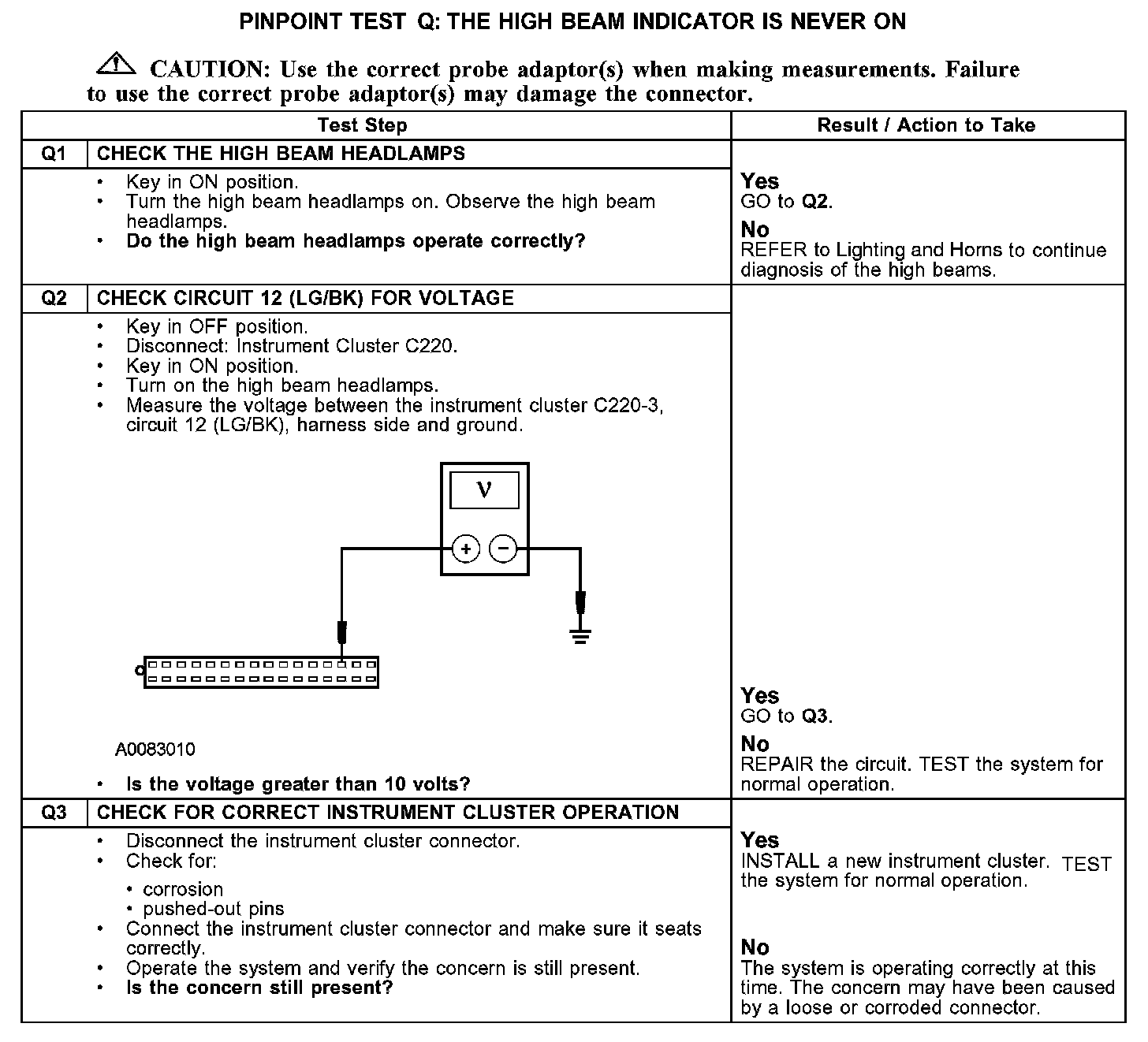

PINPOINT TEST Q: THE HIGH BEAM INDICATOR IS NEVER ON

Q1-Q3:

Normal Operation
Voltage is supplied to the high beam indicator bulb through circuit 12 (LG/BK) when the multifunction switch is placed in the high beam position.

Possible Causes
- circuit 12 (LG/BK) open
- instrument cluster
