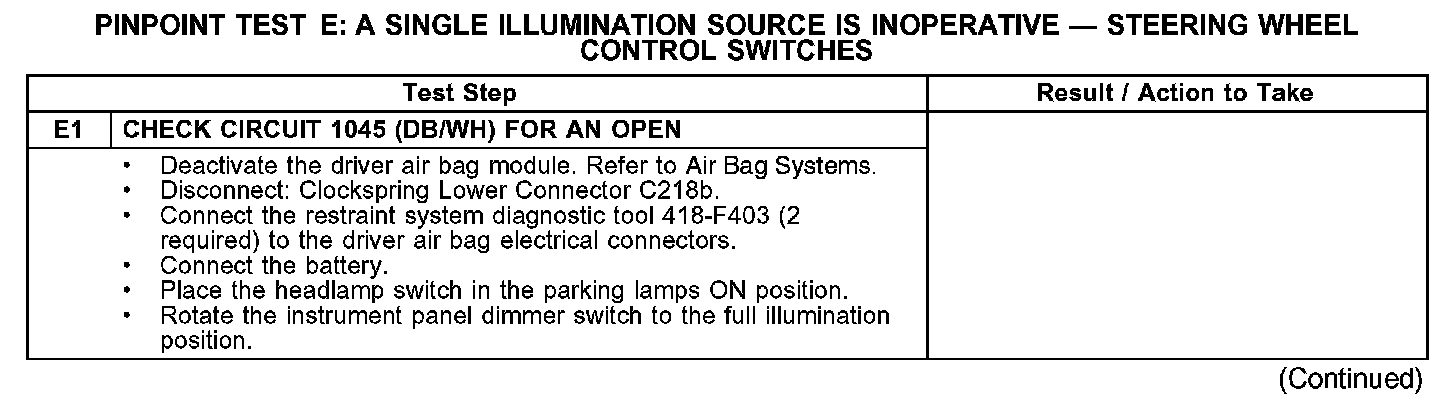

PINPOINT TEST E: A SINGLE ILLUMINATION SOURCE IS INOPERATIVE - STEERING WHEEL CONTROL SWITCHES

E1:

E1-E3:

E3-E4:

Normal Operation
A variable pulse width modulated (PWM) voltage is supplied to the steering wheel control switches from the instrument panel dimmer switch on circuit 1045 (DB/WH). The steering wheel control switches are grounded on circuit 57 (BK).

Possible Causes
- circuit 57 (BK) open
- circuit 1045 (DB/WH) open
- clockspring
- steering wheel control switches harness
- steering wheel control switches
