Test D: A Single Illumination Source Is Inoperative

PINPOINT TEST D: A SINGLE ILLUMINATION SOURCE IS INOPERATIVE

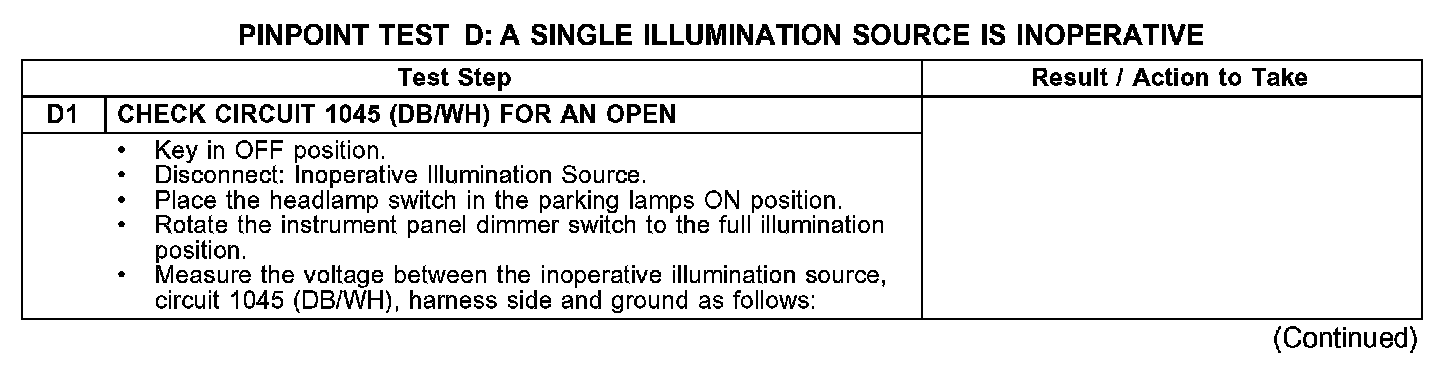

D1:

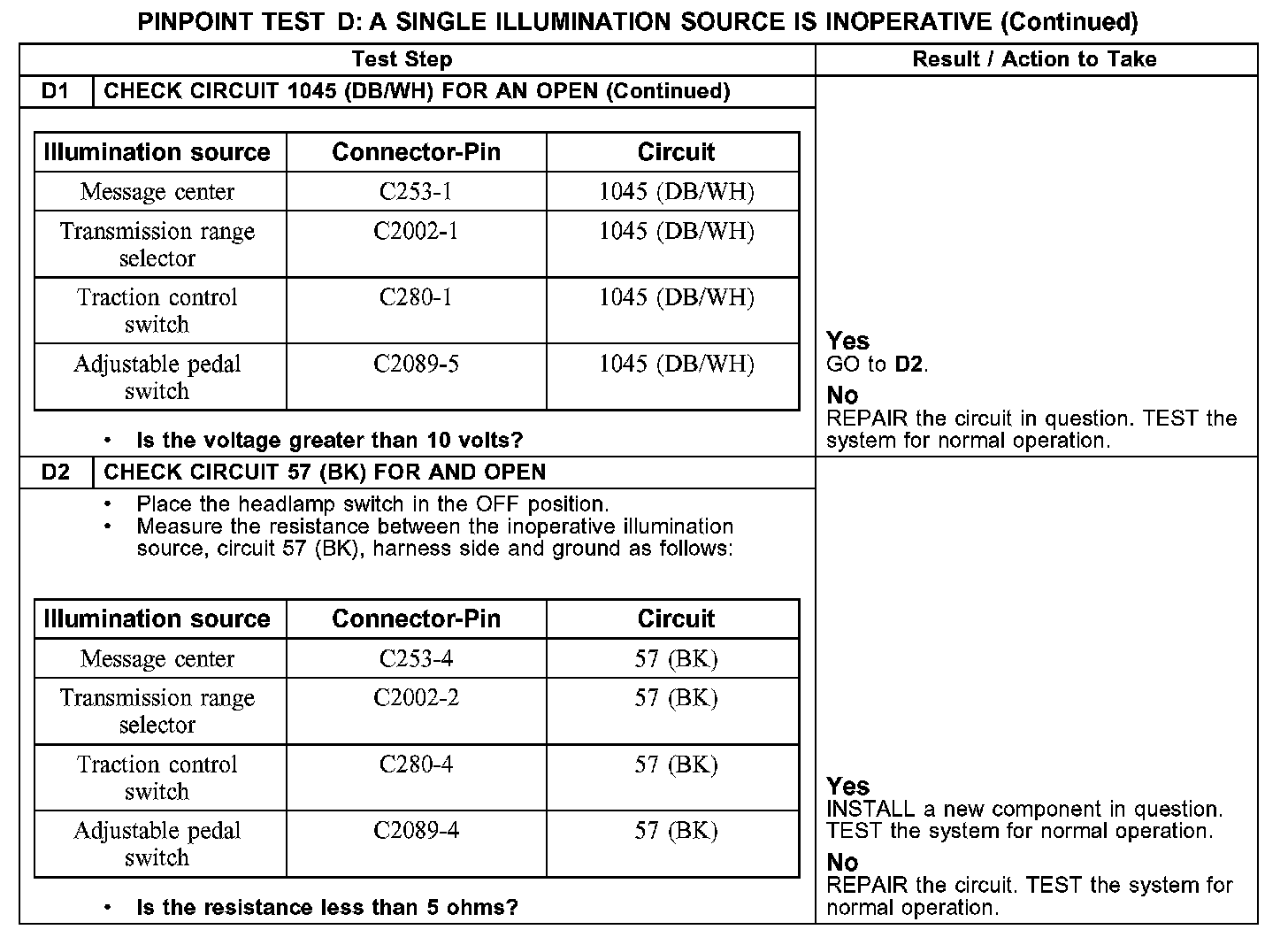

D1-D2:

Normal Operation
A variable pulse width modulated (PWM) voltage is supplied to the dimmable illumination components and switches from the instrument panel dimmer switch on circuit 1045 (DB/WH). The dimmable illumination components and switches are grounded on circuit 57 (BK).

Possible Causes
- circuit 57 (BK) open
- circuit 1045 (DB/WH) open
- message center switch
- traction control switch
- adjustable pedal switch
