Instrument Cluster (IC)

INSTRUMENT CLUSTER

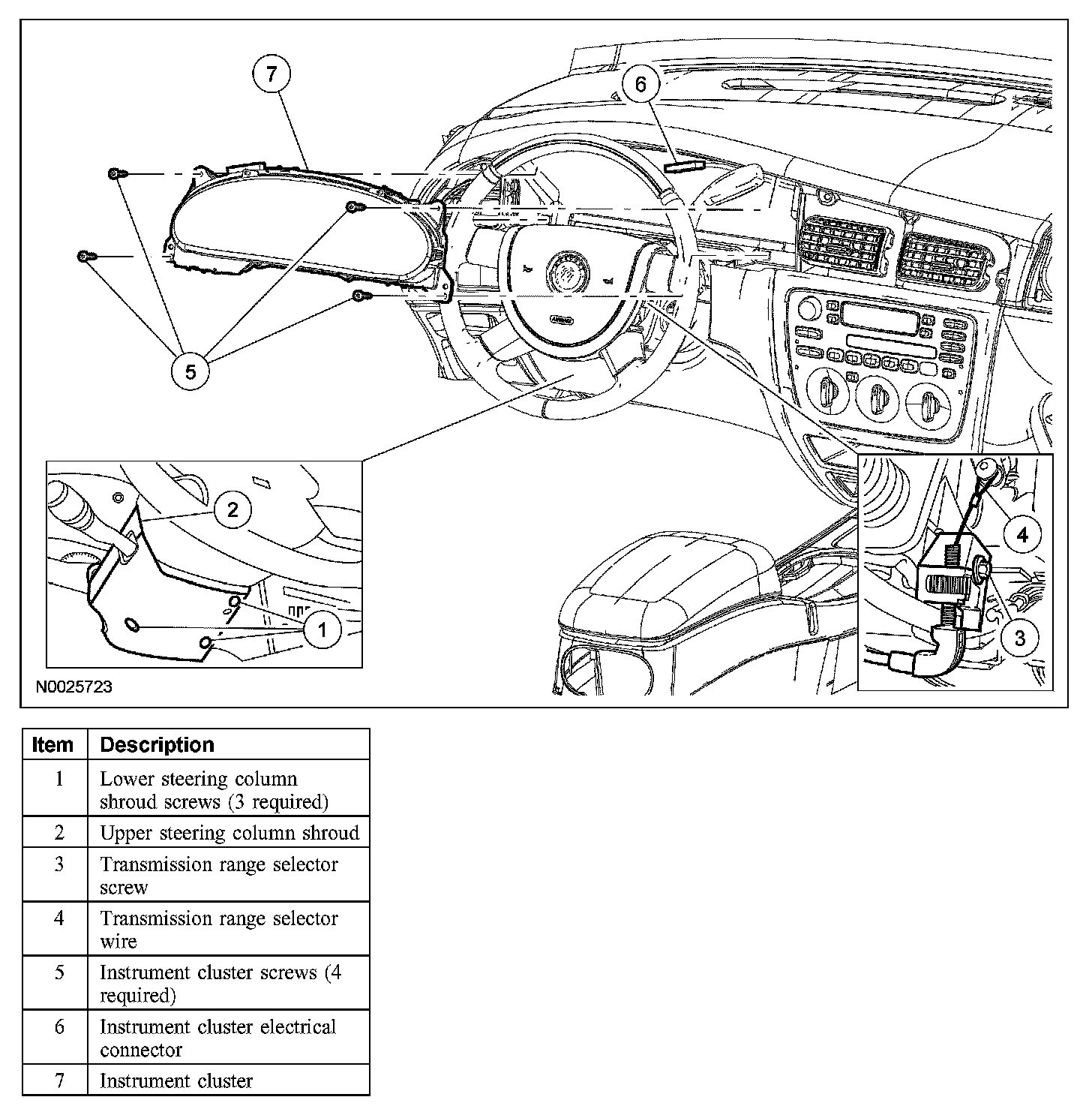

Removal and Installation

1. NOTE: Prior to removal of the instrument cluster, it is necessary to upload the instrument cluster configuration information to the diagnostic tool.

Depower the supplemental restraint system (SRS).

2. Remove the instrument cluster finish panel.
3. If equipped with column-shift, remove the 3 lower steering column shroud screws and remove the upper steering column shroud.
- Remove the transmission range selector lever bolt and disconnect the cable.

4. Remove the 4 screws and the instrument cluster.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
- Download the instrument cluster configuration information from the diagnostic tool into the new instrument cluster.
