Vacuum Reservoir HVAC: Service and Repair

VACUUM RESERVOIR

Removal and Installation
1. Remove the right front tire and wheel assembly.

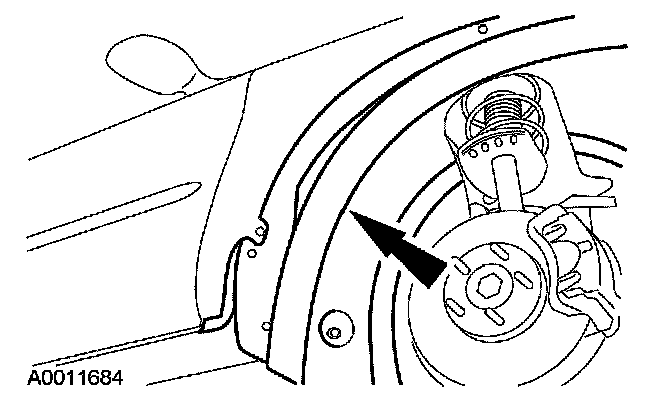

2. Remove the rear half of the RH front fender splash shield.

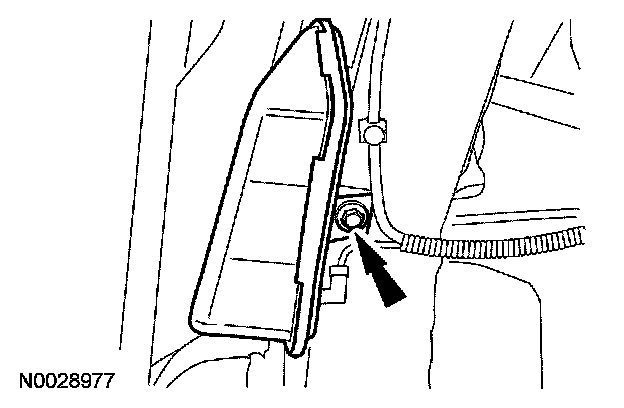

3. Remove the bolt.
- To install, tighten to 9 Nm (80 lb-in).

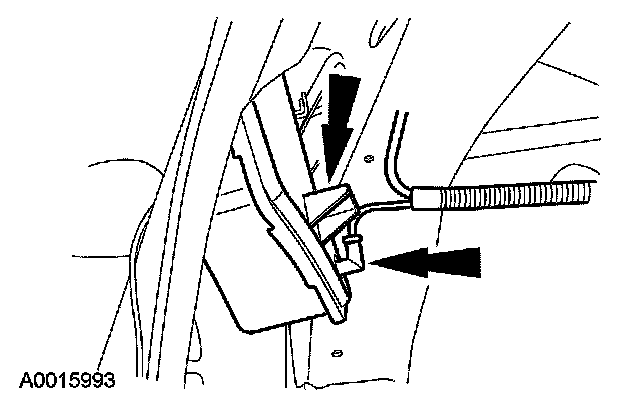

4. Disconnect the vacuum hose. Remove the vacuum reservoir and bracket.
5. To install, reverse the removal procedure.
