Electronic Automatic Temperature Control Vacuum Schematic

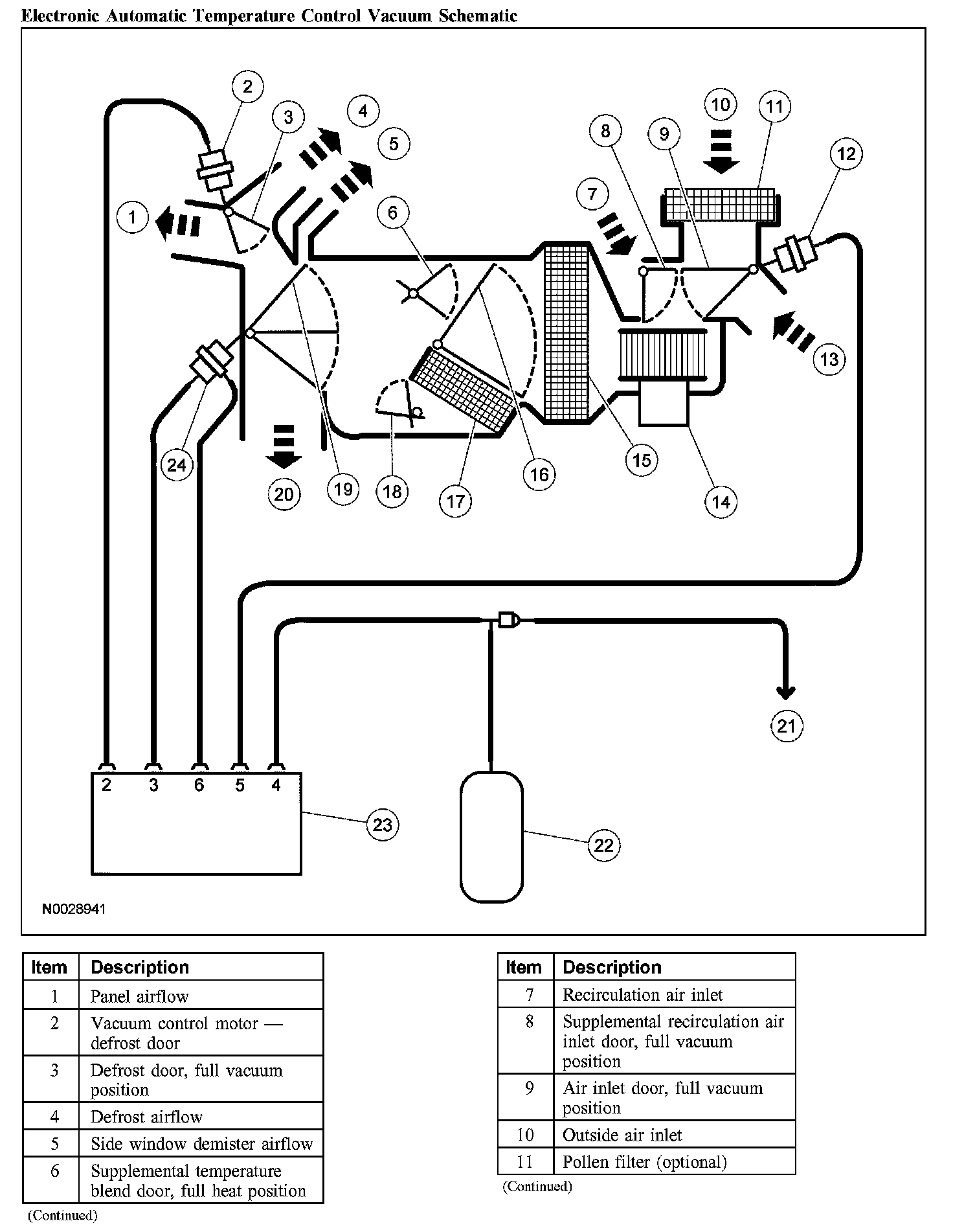

Electronic Automatic Temperature Control Vacuum Schematic (Part 1):

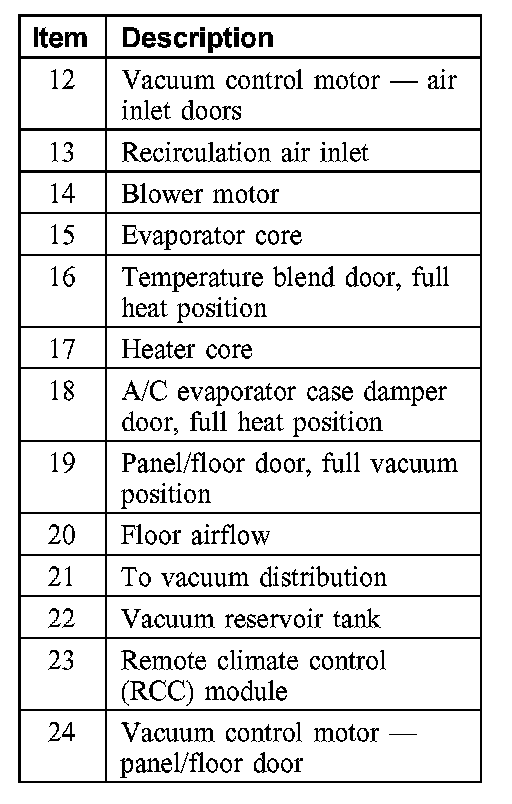

Electronic Automatic Temperature Control Vacuum Schematic (Part 2):
