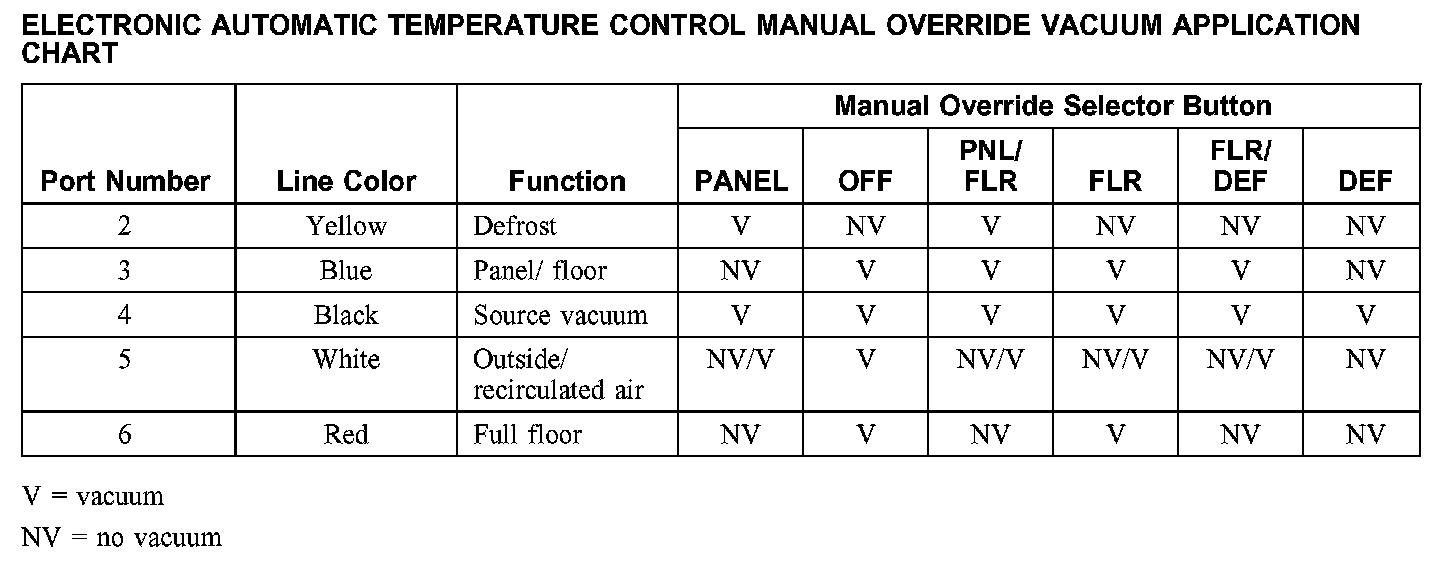

Electronic Automatic Temperature Control Manual Override Vacuum Application Chart

Electronic Automatic Temperature Control Manual Override Vacuum Application Chart:
