Test H: Incorrect/Erratic Direction of Air Flow From Outlet - EATC

PINPOINT TEST H: INCORRECT/ERRATIC DIRECTION OF AIR FLOW FROM OUTLET - EATC

H1:

H2-H4:

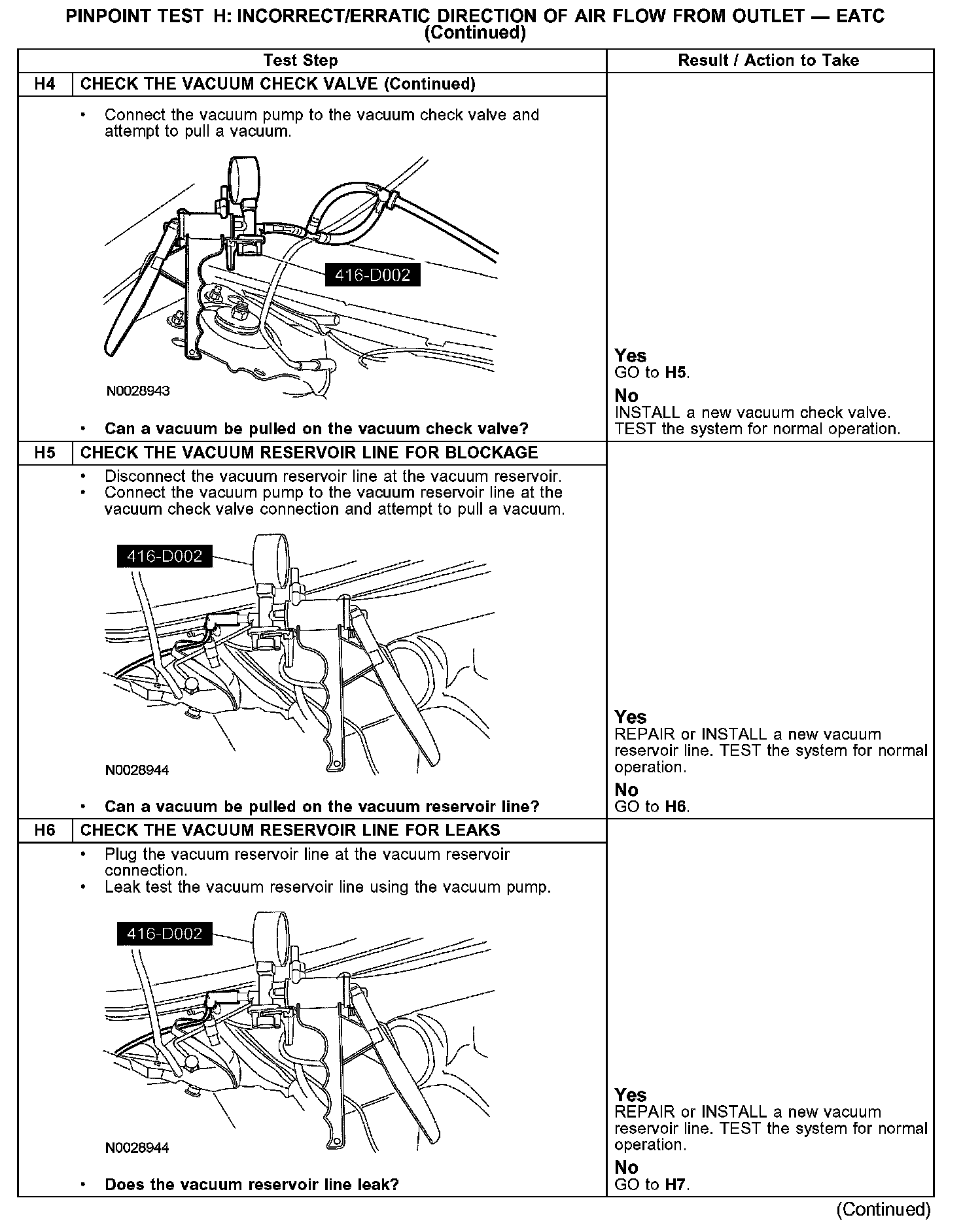

H4-H6:

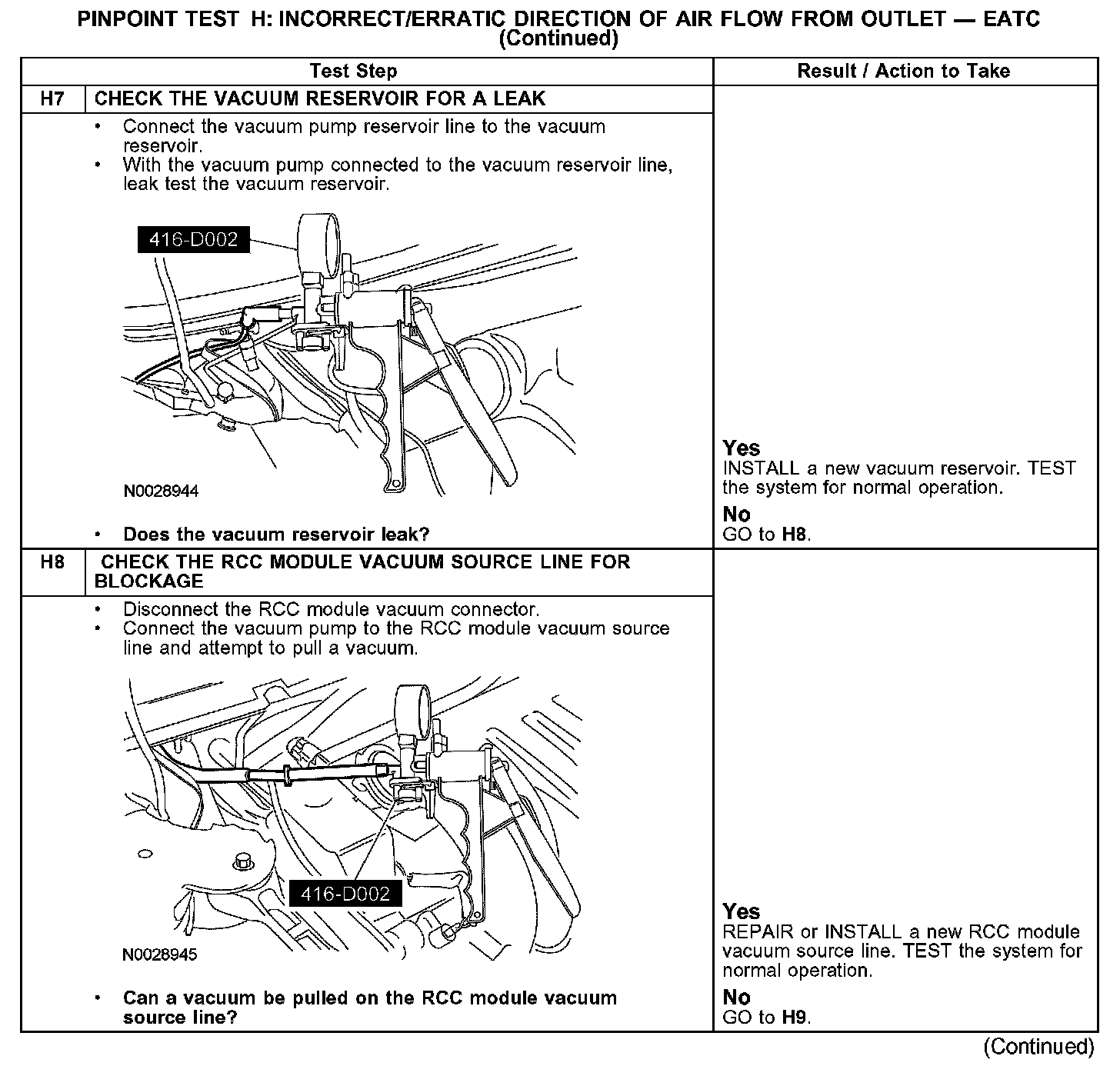

H7-H8:

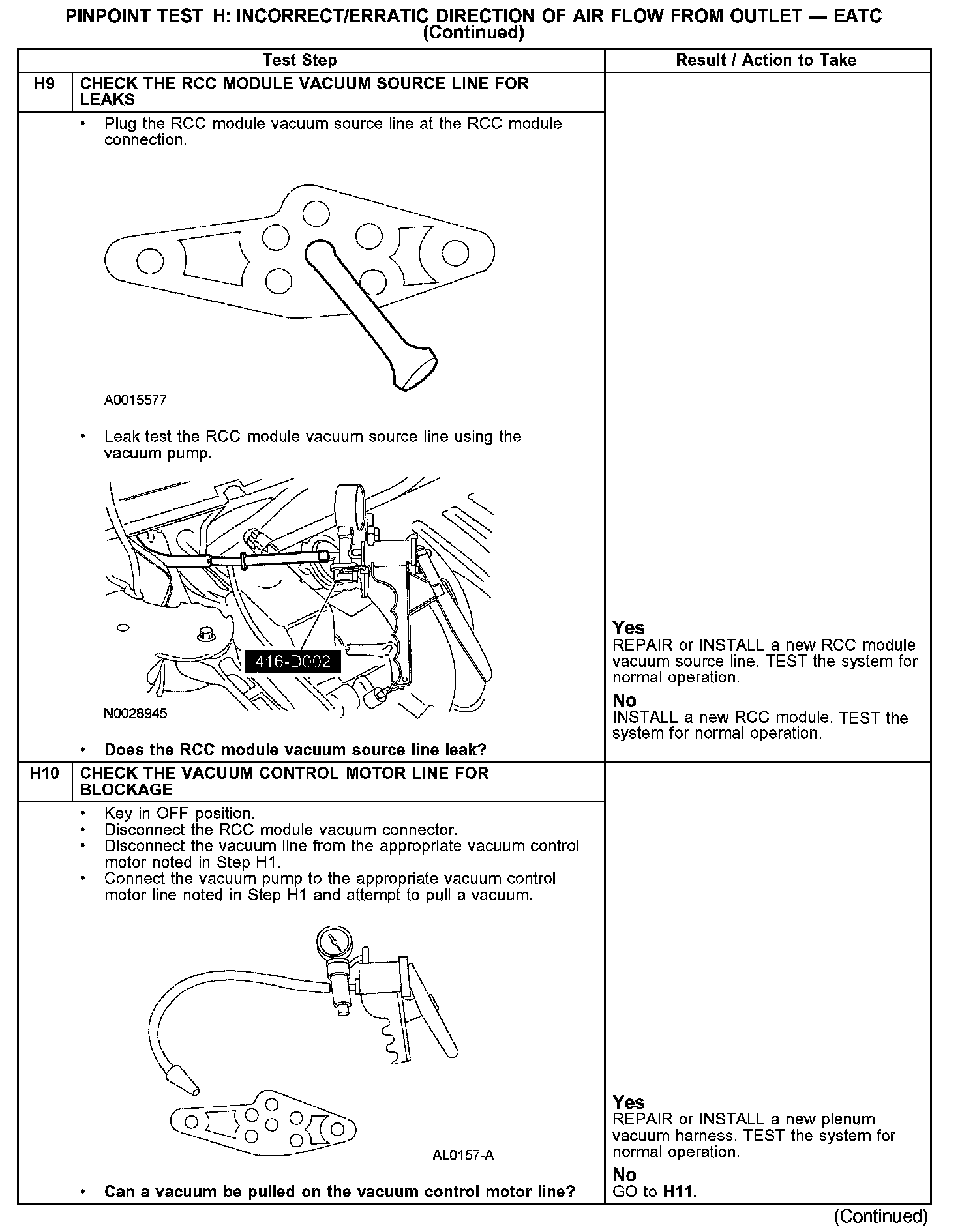

H9-H10:

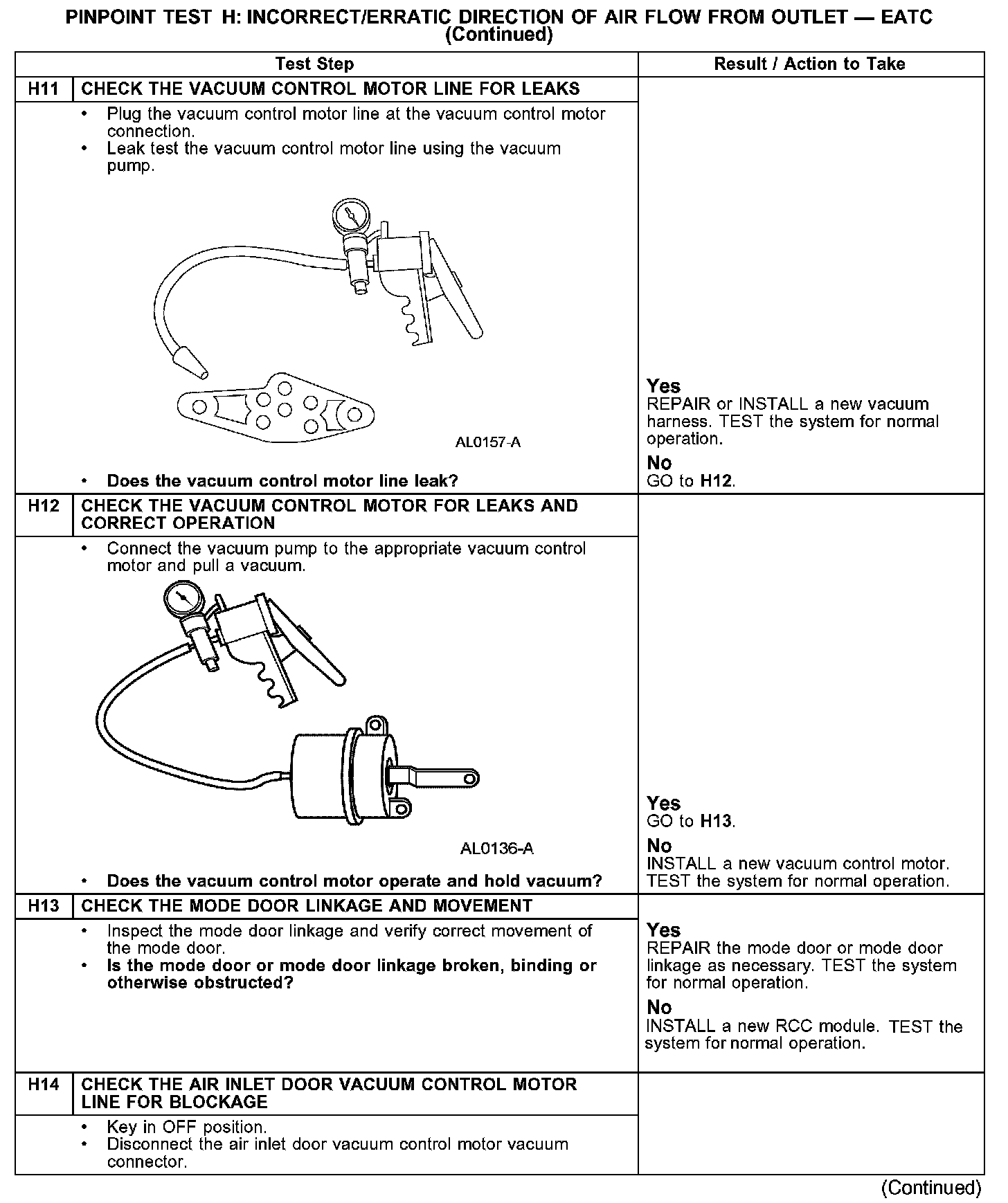

H11-H14:

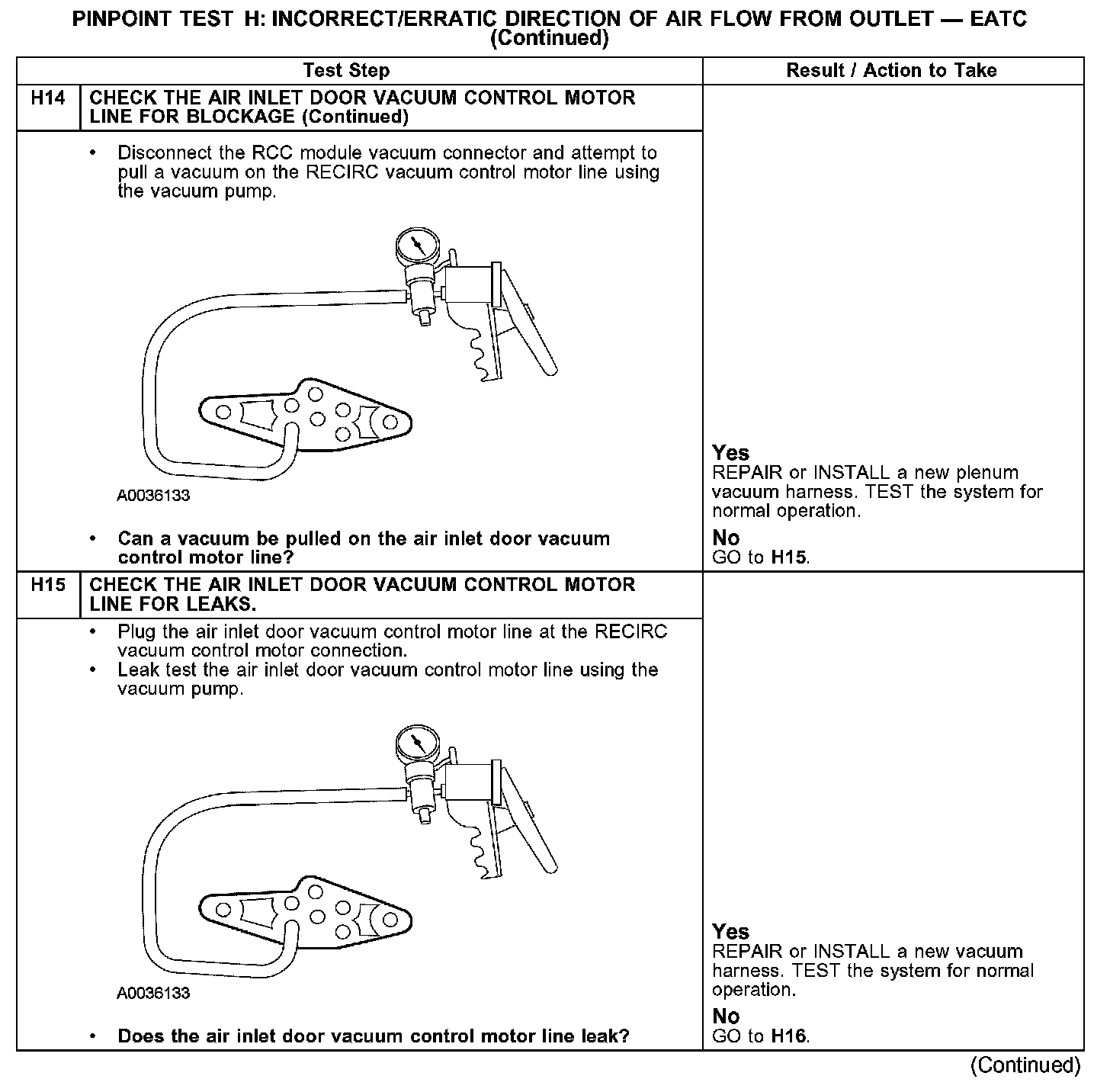

H14-H15:

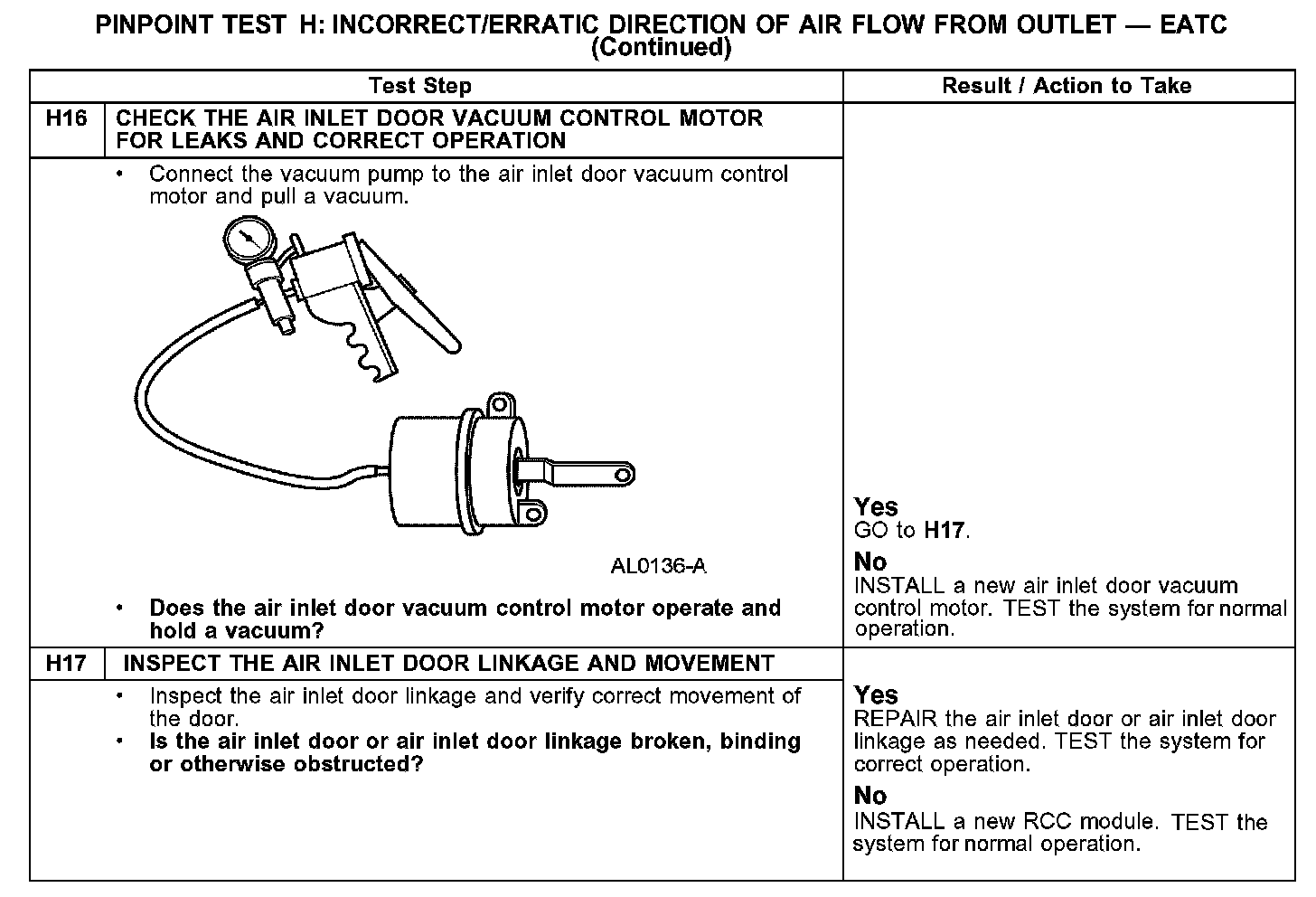

H16-H17:

Normal Operation
Under normal operation, the function selector switch is provided vacuum from the engine. When a position is selected, vacuum is applied to the desired vacuum control motor that is connected to the mode door you want to control.

Possible Causes
- Remote climate control (RCC) module
- Integrated control panel (ICP)
- Vacuum control motor
- Stuck or bound linkage or door
- Leaking or plugged vacuum hose
