Plenum Chamber

PLENUM CHAMBER

Removal and Installation

NOTE: Vehicle with center console shown, vehicles without center console similar.

1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel, Instrument Panel

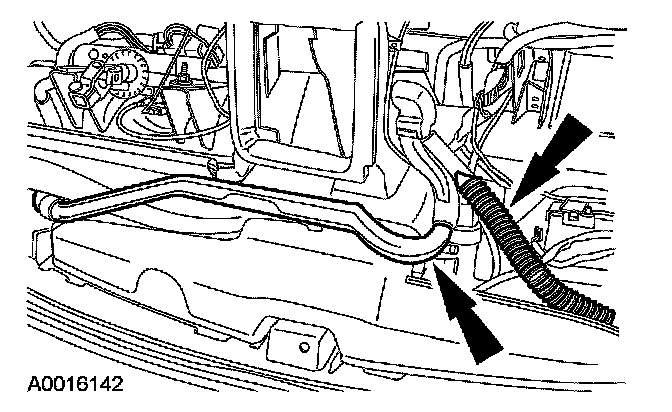

2. Disconnect the driver side and passenger side demister hoses.

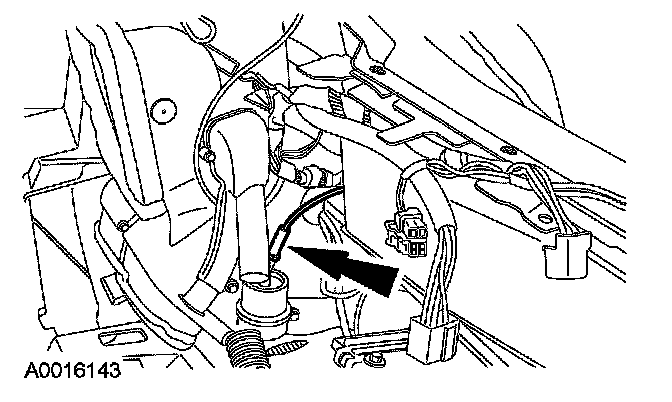

3. Disconnect the vacuum control motor hose.

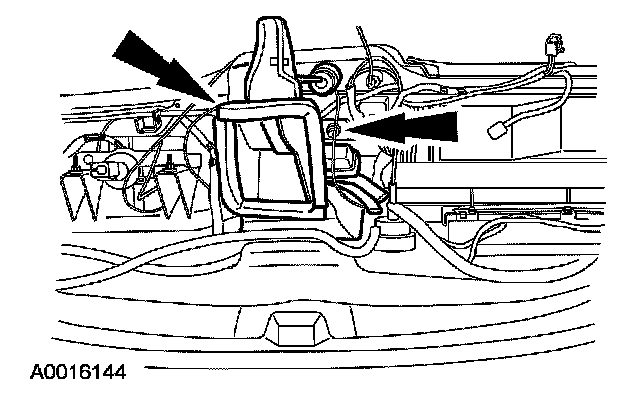

4. Remove the 2 screws and the plenum chamber.
5. To install, reverse the removal procedure.
