Disassembly and Assembly

PLENUM CHAMBER

Disassembly and Assembly
1. Remove the plenum chamber.

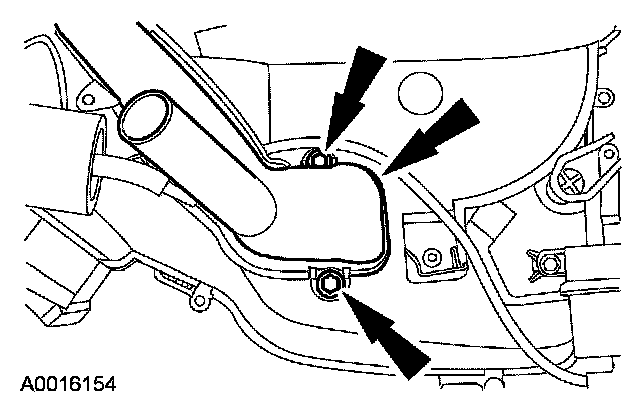

2. Remove the 2 screws and the plenum demister adapter.

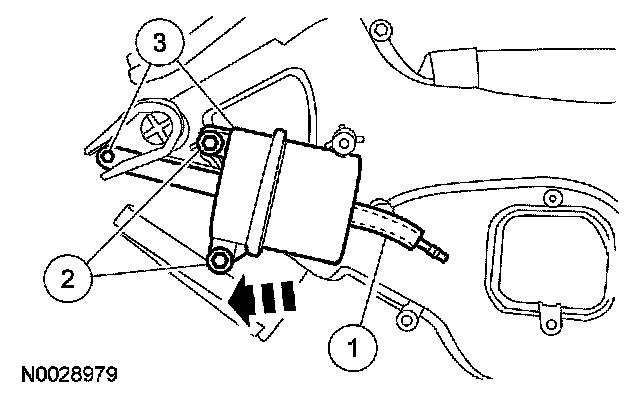

3. Remove the panel/floor door vacuum control motor.
1 Disconnect the vacuum hose.
2 Remove the 2 screws.
3 Rotate and remove the panel/floor door vacuum control motor.

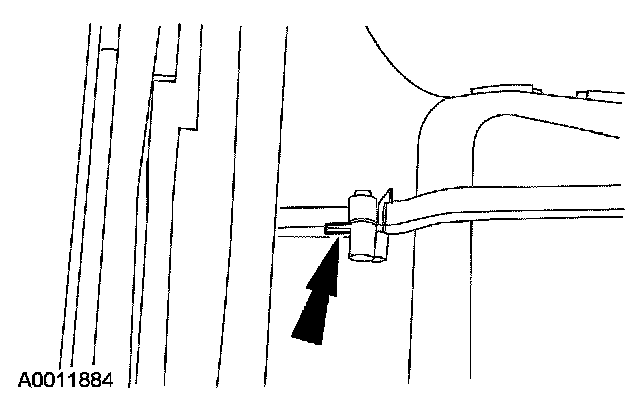

4. Cut the snap-loops around the housing flange of the plenum chamber.
5. Remove the 3 screws. Separate the plenum chamber.

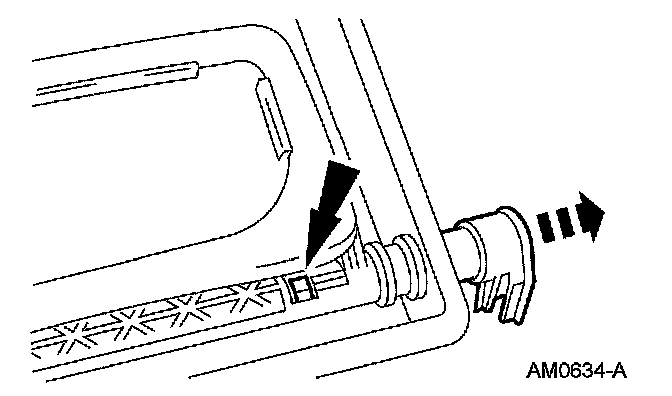

6. While depressing the tab, remove the panel/floor door and lever.
7. To assemble, reverse the disassembly procedure.
