Cabin Air Filter / Purifier: Service and Repair

CABIN AIR FILTER

Removal and Installation

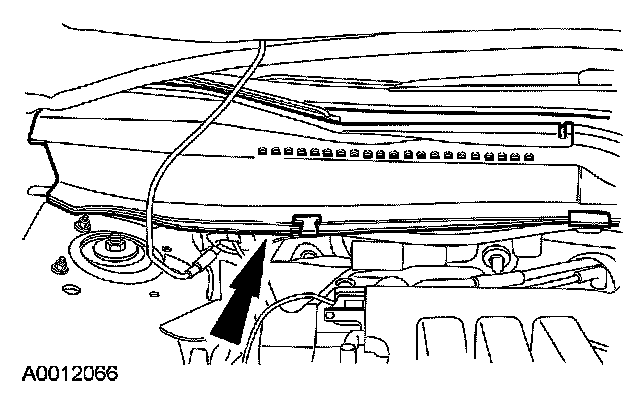

1. Remove the right side cowl vent screen.

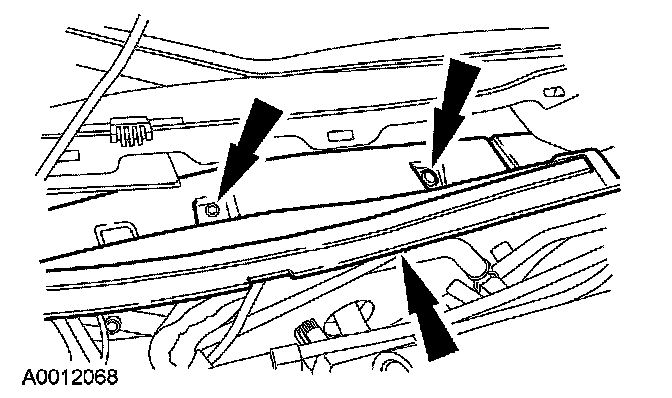

2. Remove the 2 screws and the water shield.

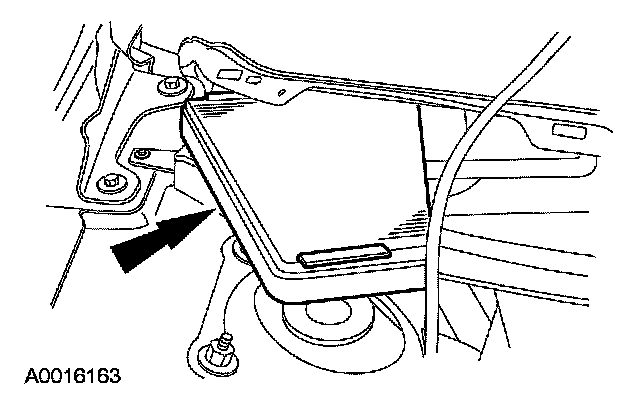

3. Remove the cabin air filter.
4. To install, reverse the removal procedure.
