Blower Motor: Service and Repair

BLOWER MOTOR

Removal and Installation

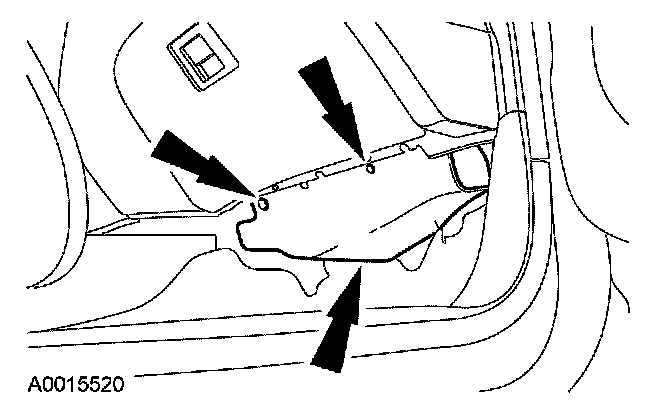

1. Remove the 2 pin-type retainers and the right instrument panel insulator.

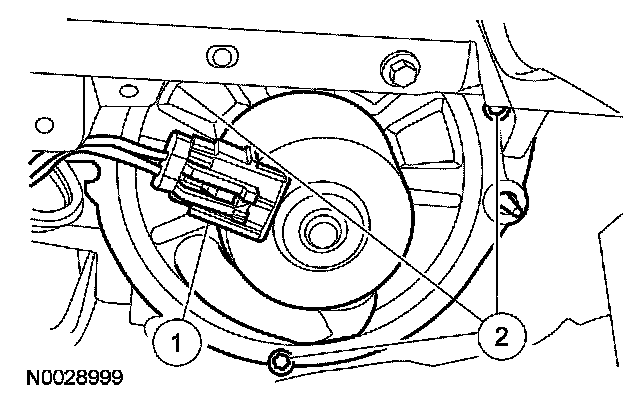

2. Remove the blower motor.
1 Disconnect the electrical connector.
2 Remove the 3 screws and the blower motor.







3. CAUTION: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting shaft.

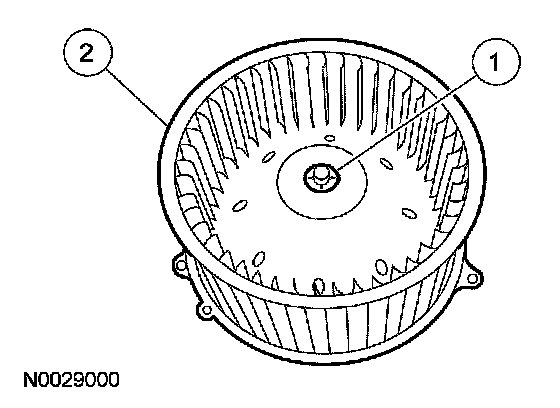

Remove the wheel from the blower motor.
1 Remove the push clip.
2 Remove the wheel from the blower motor.

4. To install, reverse the removal procedure.
