Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR

Removal and Installation

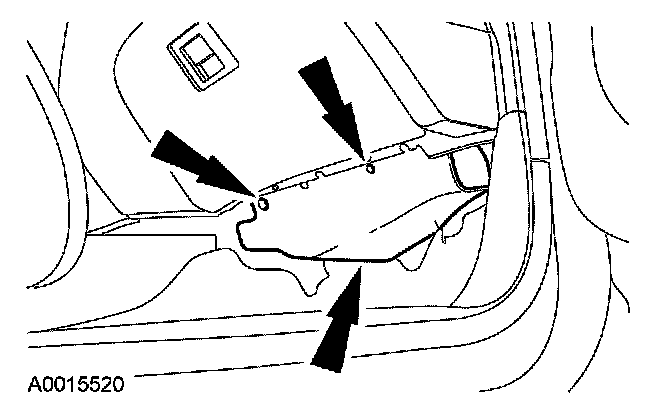

1. Remove the RH lower instrument panel insulator.

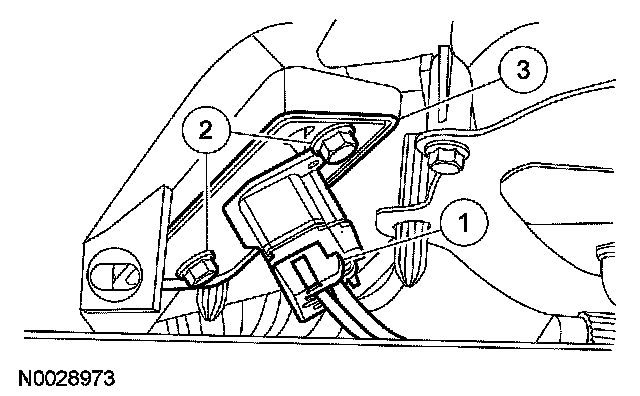

2. Remove the blower motor resistor.
1 Disconnect the electrical connector.
2 Remove the 2 screws.
3 Remove the blower motor resistor.

3. To install, reverse the removal procedure.
