Instrument Panel Air Distribution Ducts

INSTRUMENT PANEL AIR DISTRIBUTION DUCTS

Disassembly and Assembly
1. Remove the plenum chamber.

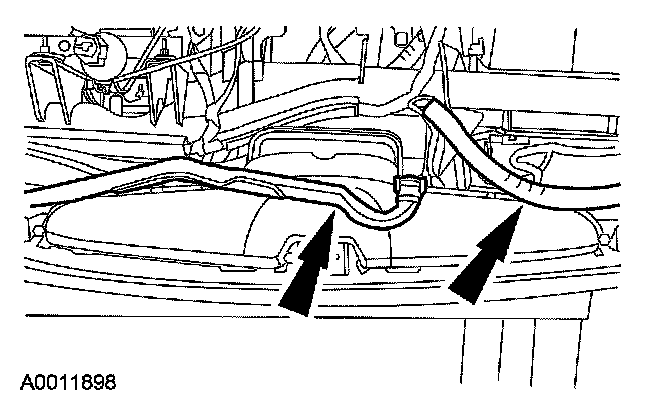

2. Remove the driver side and passenger side demister hoses.

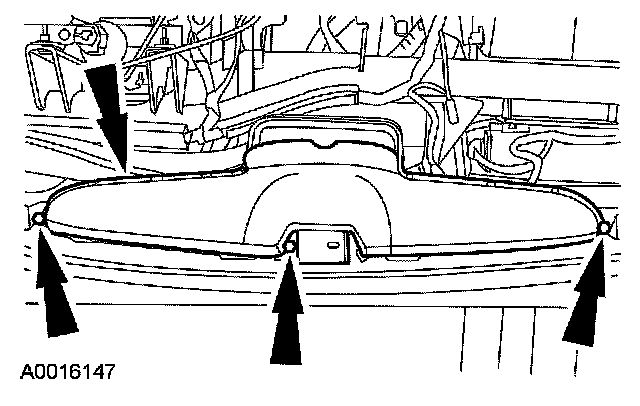

3. Remove the 3 screws and the defroster duct.

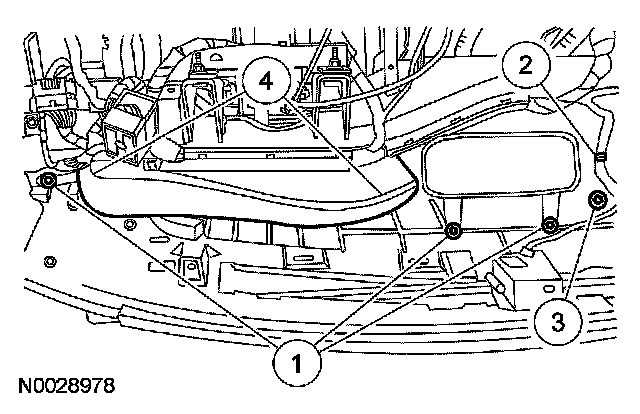

4. Remove the driver side and center register duct.
1 Remove the 3 screws.
2 Detach the wiring harness.
3 Remove the screw.
4 Detach the driver side and center register duct from the registers. Remove the driver side and center register duct.

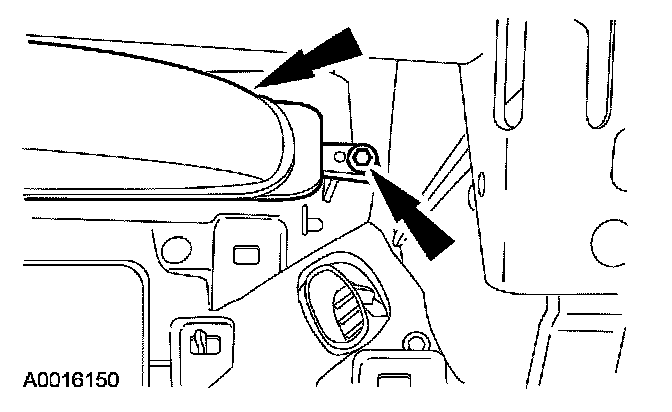

5. Remove the screw and the driver side demister.

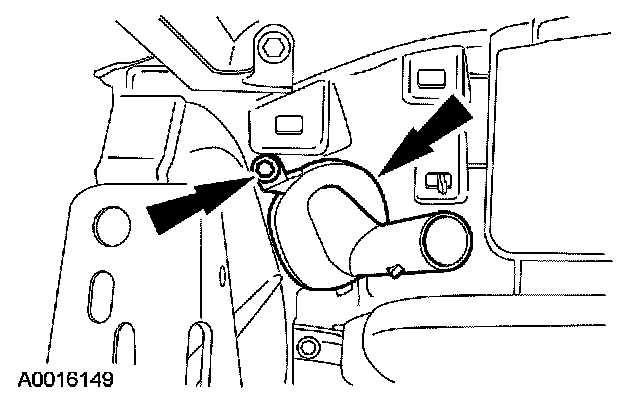

6. Remove the screw and the passenger side demister.

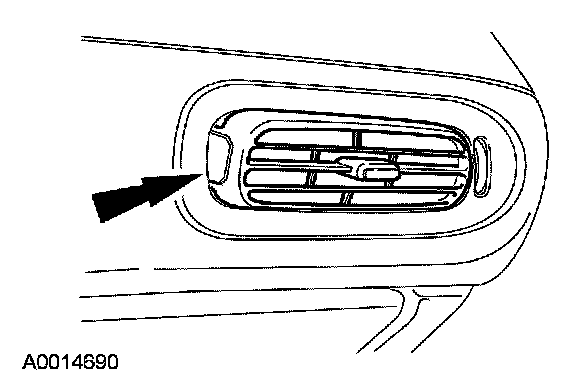

7. Carefully pry the left side of the register barrel. Remove the register barrel.

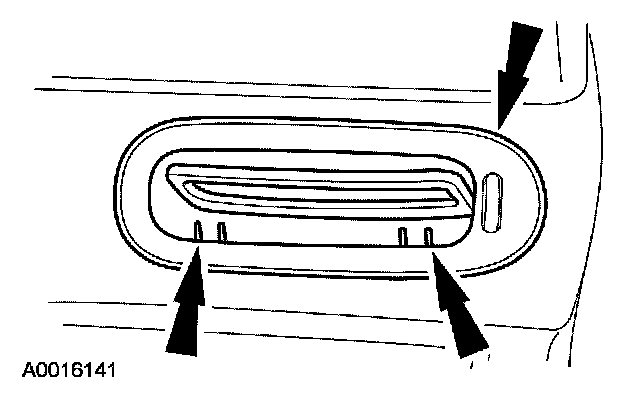

8. Disengage the 4 tabs. Remove the register housing.







9. Remove the screw and the passenger side register duct.
10. To assemble, reverse the disassembly procedure.
