Footwell Duct - Rear

FOOTWELL DUCT - REAR

Removal and Installation

All vehicles
1. Remove the driver and passenger front seats.

Vehicles with center console
2. Remove the front floor shifter.

All vehicles

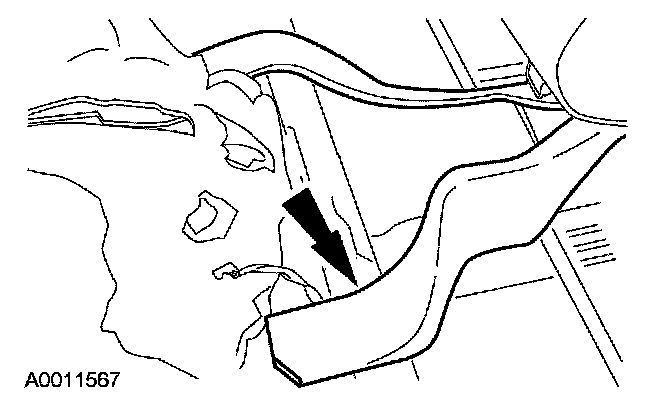

3. Fold the floor carpet rearward to expose the rear floor duct. Remove the 2 pin-type retainers.

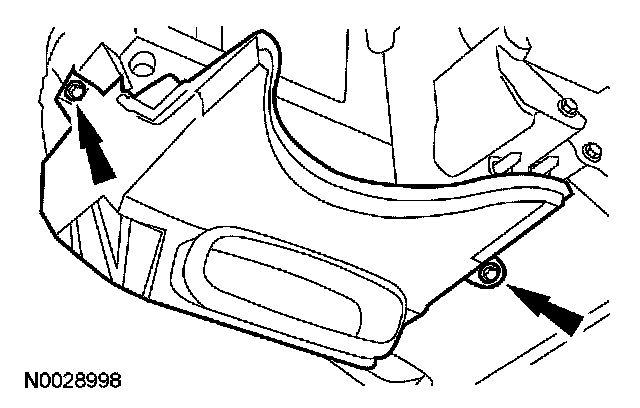

4. Remove the 2 front floor duct screws.
5. Separate the floor duct and the rear footwell duct. Remove the rear footwell duct.
6. To install, reverse the removal procedure.
