Air Inlet Duct

AIR INLET DUCT

Removal and Installation
1. Remove the heater core and evaporator core housing.

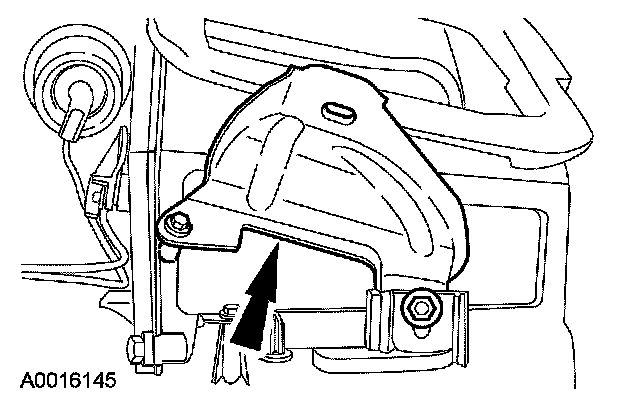

2. Remove the bracket.

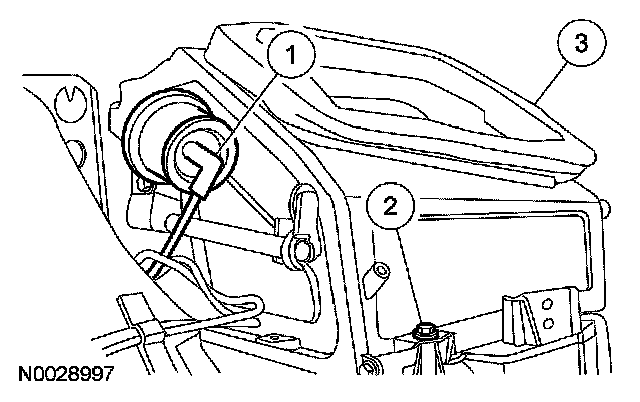

3. Remove the air inlet duct.
1 Disconnect the vacuum hose.
2 Remove the 3 screws.
3 Remove the air inlet duct.

4. To install, reverse the removal procedure.
