Valve - Guide Inner Diameter

Valve - Guide Inner Diameter

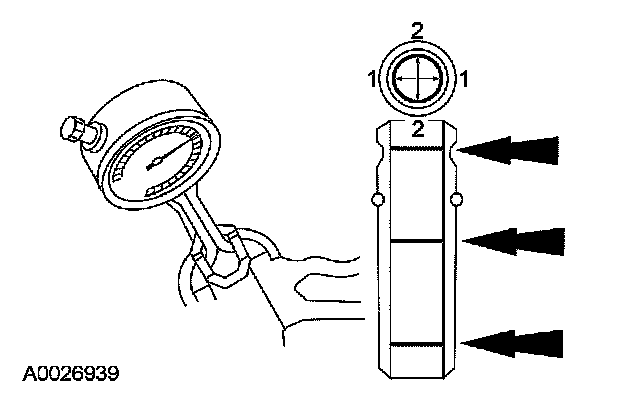

1. Measure the inner diameter of the valve guides in 2 directions where indicated.
2. If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
