Cylinder Head

Cylinder Head

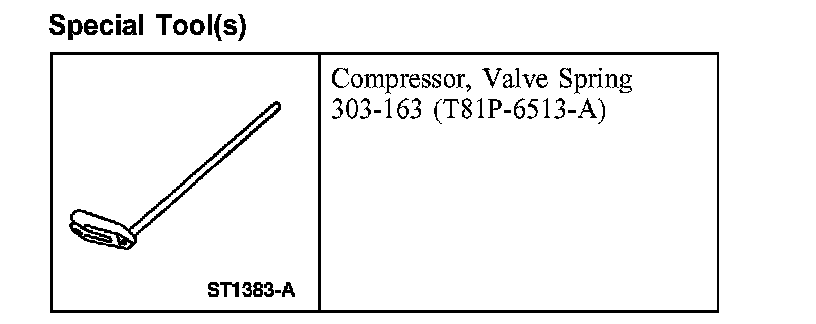

Special Tool(s):

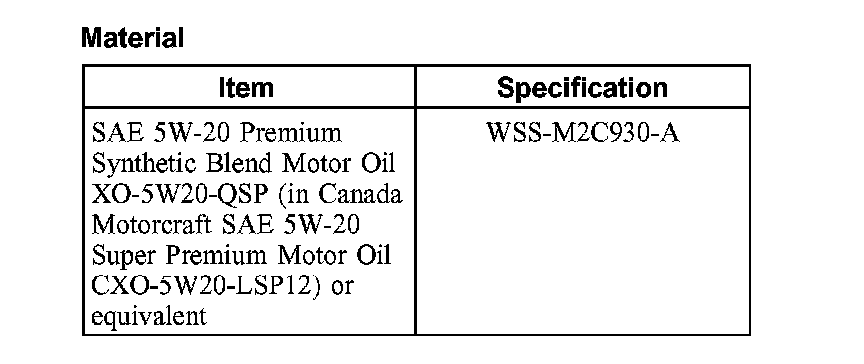

Material:

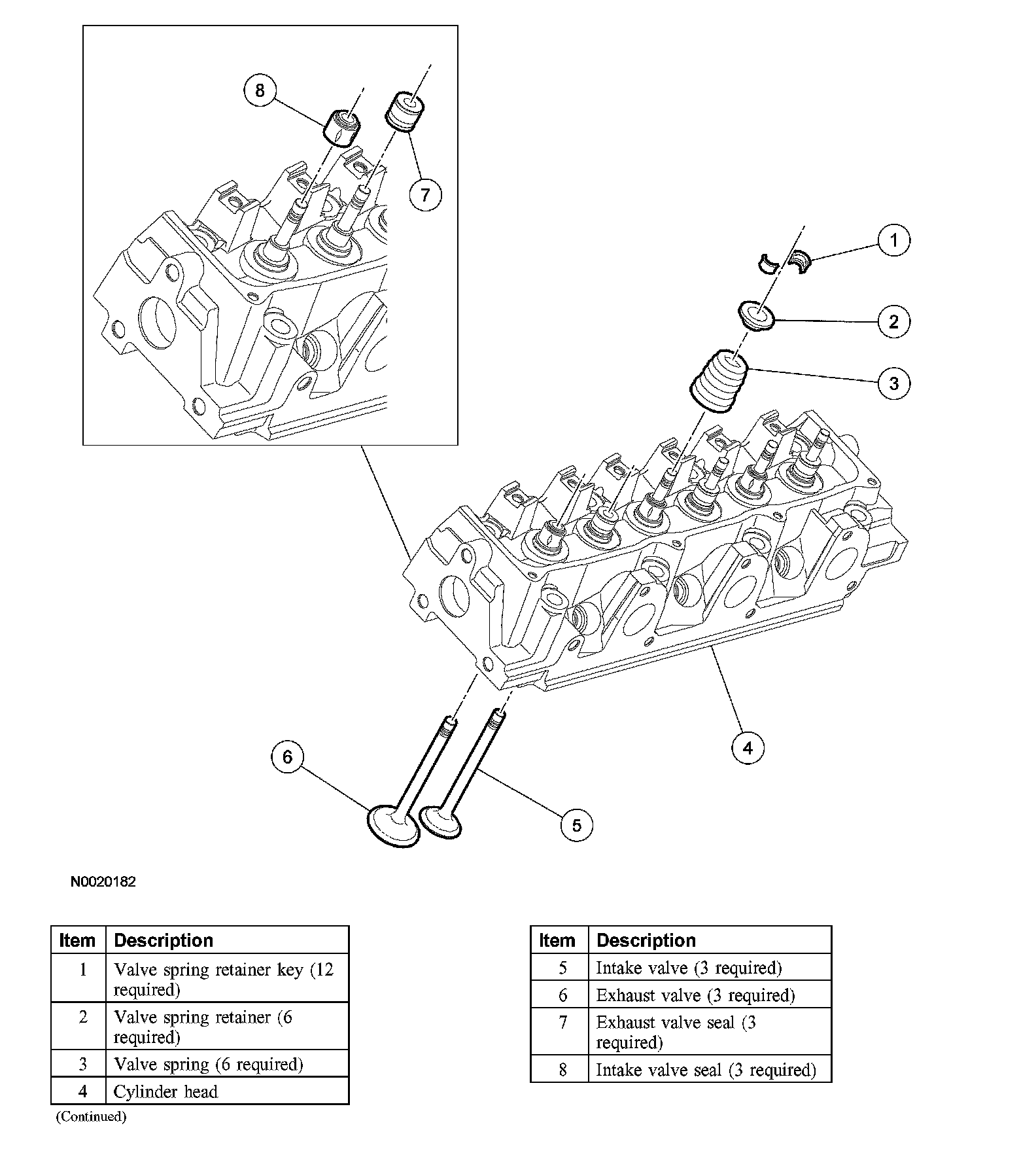

Disassembly and Assembly

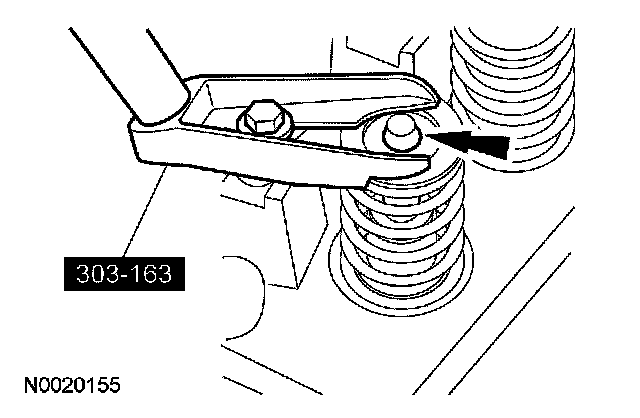

1. Using the special tool, compress the valve spring and remove the valve spring retainer keys.





2. Remove the valve spring retainer and the valve spring.

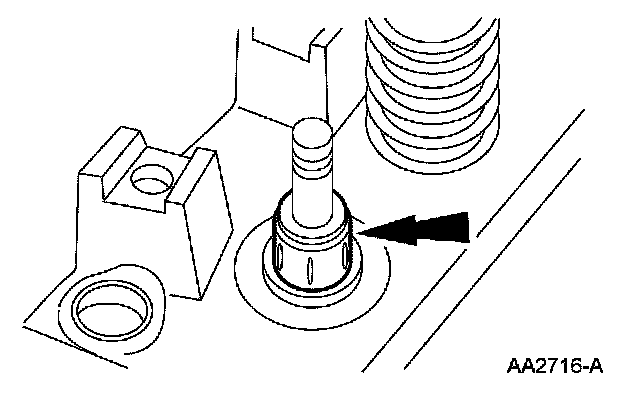

3. Remove the valve seal.

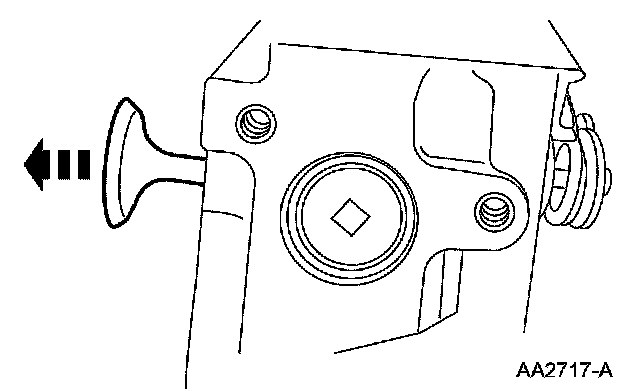

4. Remove the valve.
5. To assemble, reverse the disassembly procedure.
^ Lubricate the valve stem and the valve seal with clean engine oil.
