Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

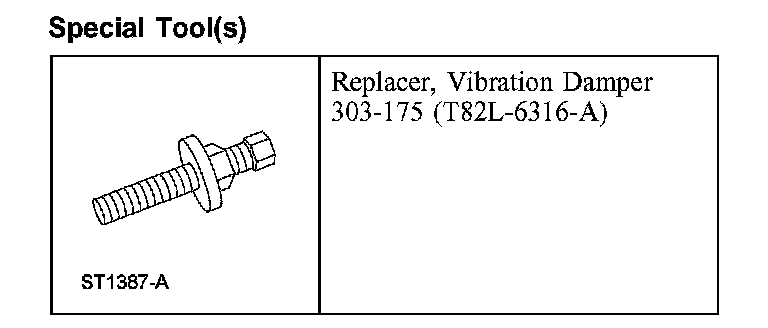

Special Tool(s):

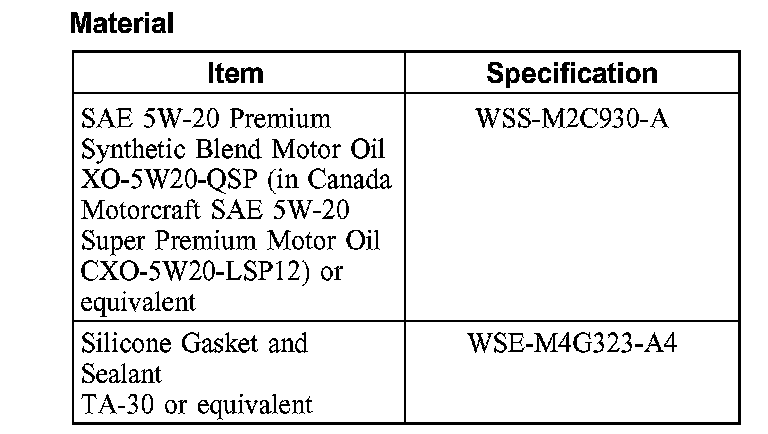

Material:

Removal

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1. Remove the crankshaft damper.

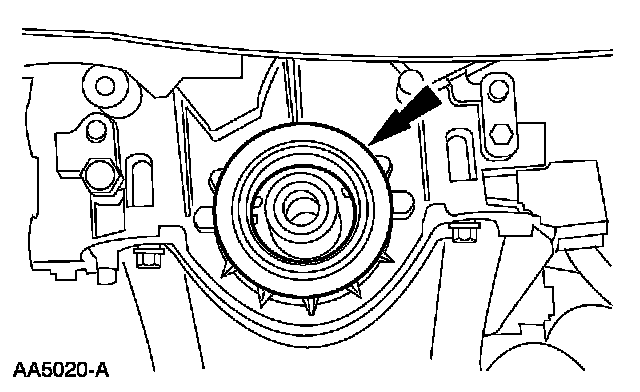

2. Remove the crankshaft oil seal.

Installation

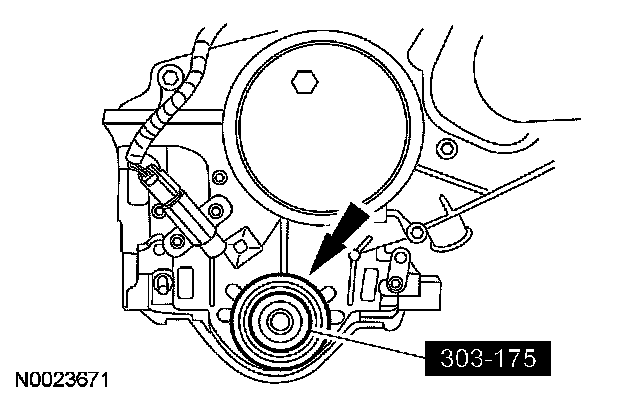

1. NOTE: Lubricate the seal lip with clean engine oil.

Using the special tool, install the crankshaft oil seal.
2. Install the crankshaft damper.
