Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

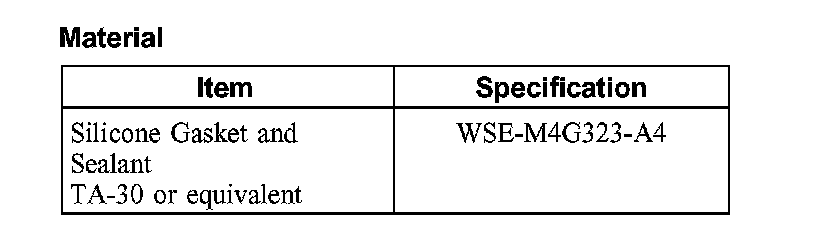

Material:

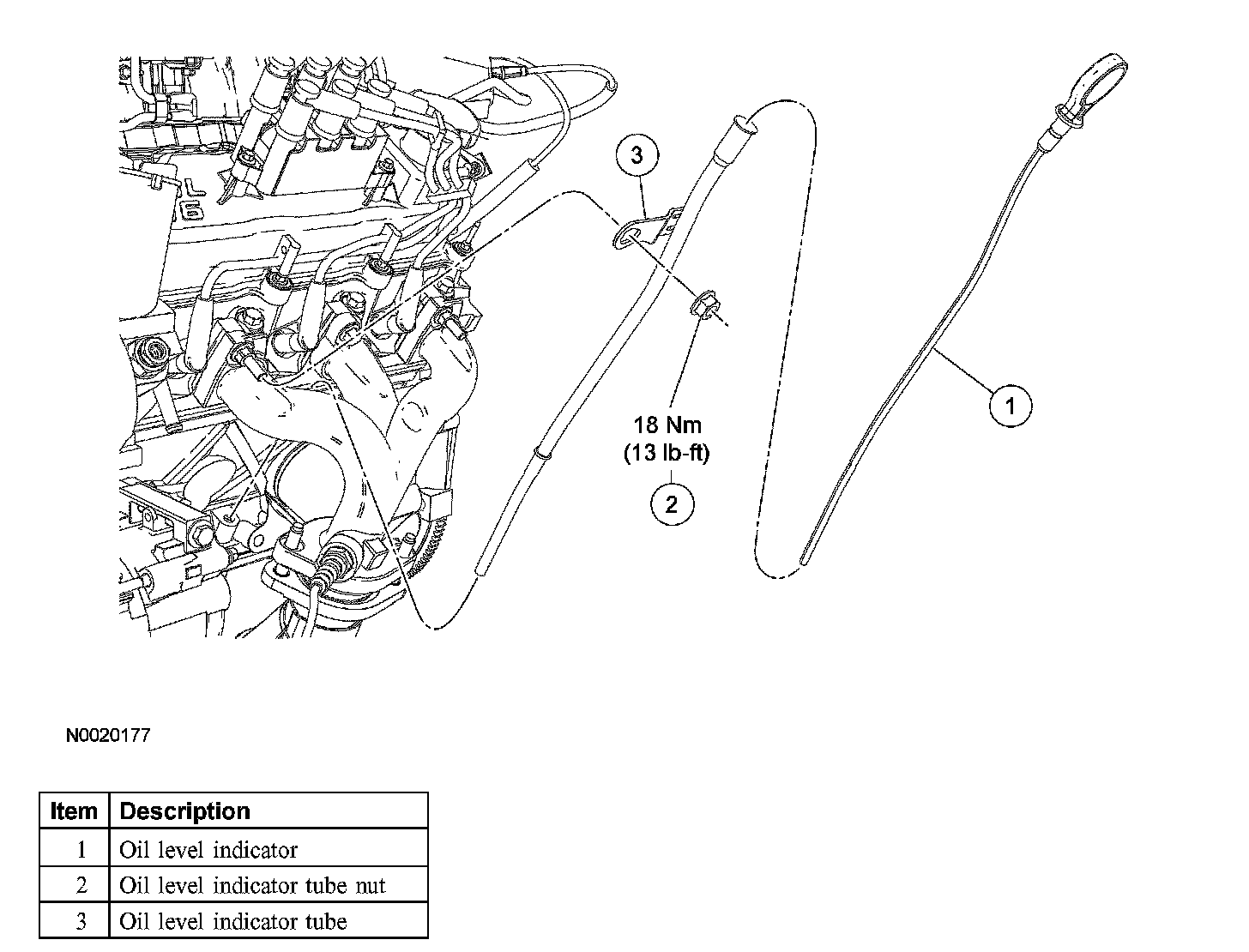

Removal
1. Remove the oil level indicator.
2. Remove the nut and the oil level indicator tube.

Installation

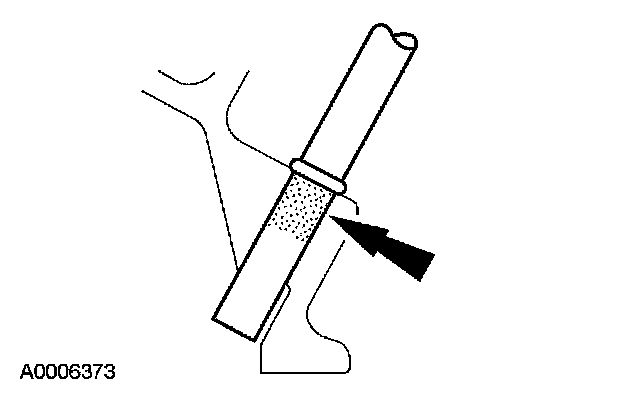

1. Coat the sealing surface of the oil level indicator tube with silicone gasket and sealant.





2. Install the oil level indicator tube and nut.
^ Tighten to 18 Nm (13 ft. lbs.).
3. Install the oil level indicator.
