Rocker Arm

Rocker Arm

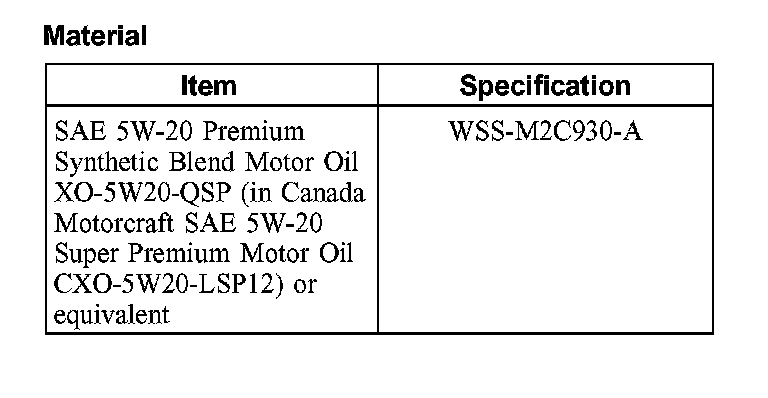

Material:

Removal and Installation

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1. Remove the valve cover.

2. NOTE: Identify and mark the location of each rocker arm. Each rocker arm must be installed in the original location.

Remove the bolts and the rocker arms.
^ To install, tighten to 32 Nm (24 ft. lbs.).
3. To install, reverse the removal procedure.
^ Lubricate the rocker arms and pivots with clean engine oil.
