Bearing - Inspection

Bearing - Inspection

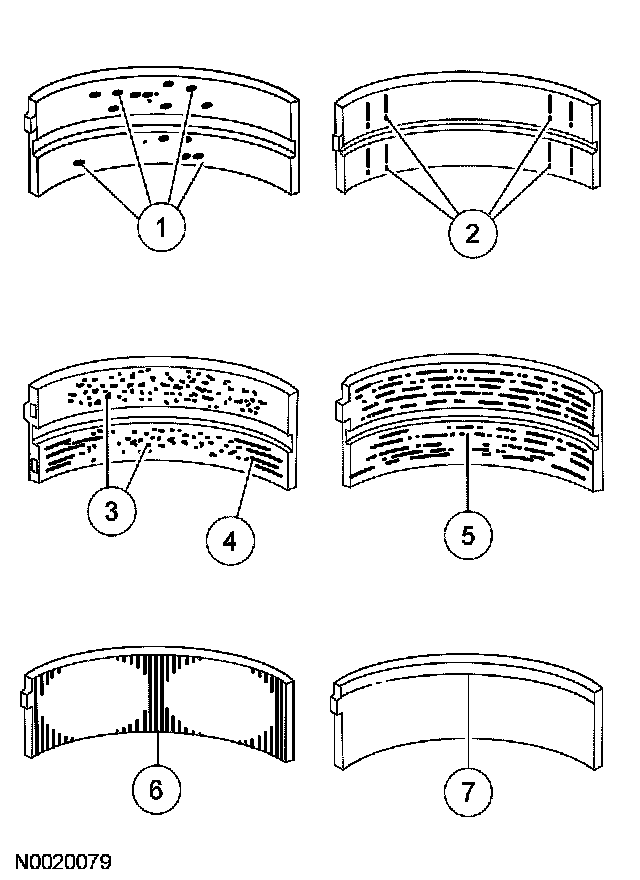

1. Inspect bearings for these defects. Possible causes are shown:
1. Cratering - fatigue failure.
2. Spot polishing - incorrect seating.
3. Imbedded dirt engine oil.
4. Scratching - dirty engine oil.
5. Base exposed - poor lubrication.
6. Both edges worn journal damaged.
7. One edge worn - journal tapered or bearing not seated.
