Home >> Ford >> 2006 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Pinpoint Tests >> Test B: The Engine Overheats

Test B: The Engine Overheats

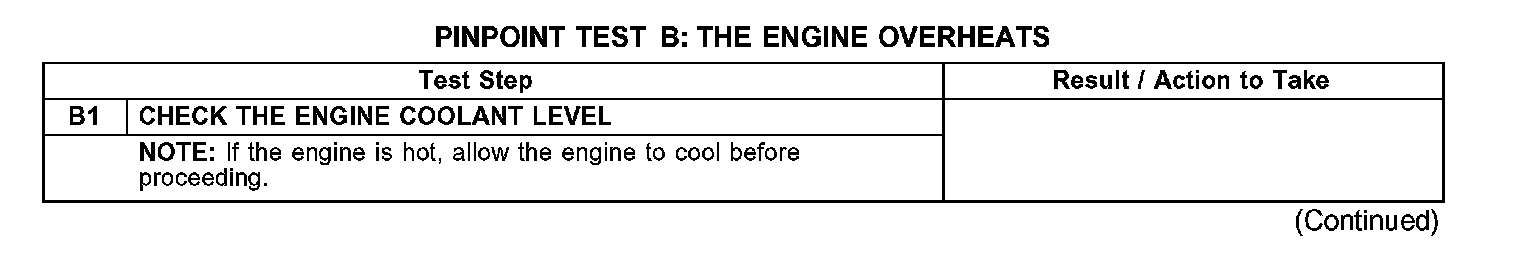

Pinpoint Test B: The Engine Overheats

B1:

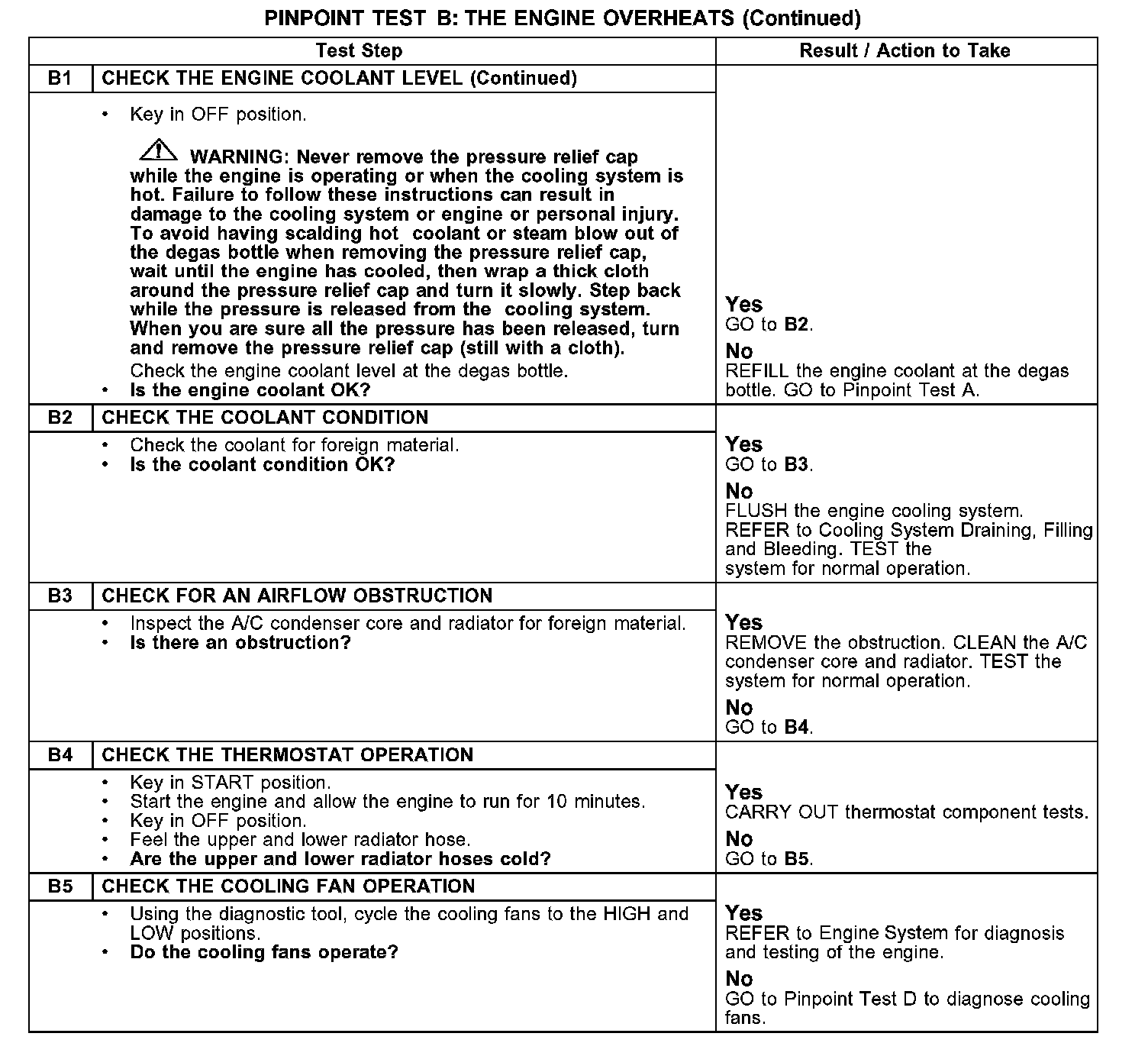

B1-B5:
