Fan Blade: Service and Repair

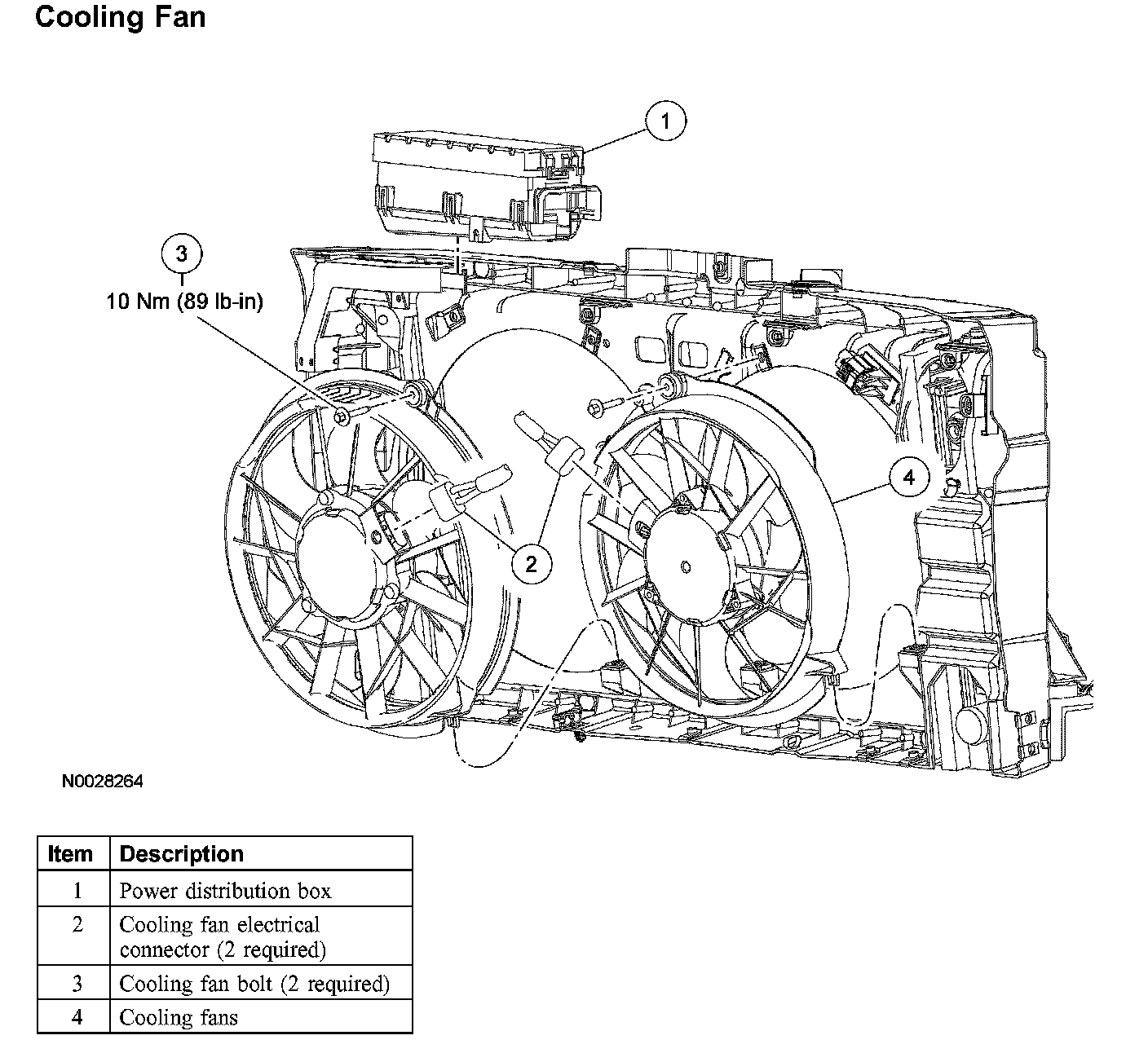

Cooling Fan

Cooling Fan:

Removal and Installation

NOTE: The RH and LH cooling fans can be serviced individually.

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Disconnect the power distribution box and position aside.
3. Disconnect the cooling fan electrical connector and detach the retainer.
4. Remove the bolt and the cooling fan.
^ To install, tighten to 10 Nm (89 inch lbs.).
5. To install, reverse the removal procedure.
