Coolant Reservoir: Service and Repair

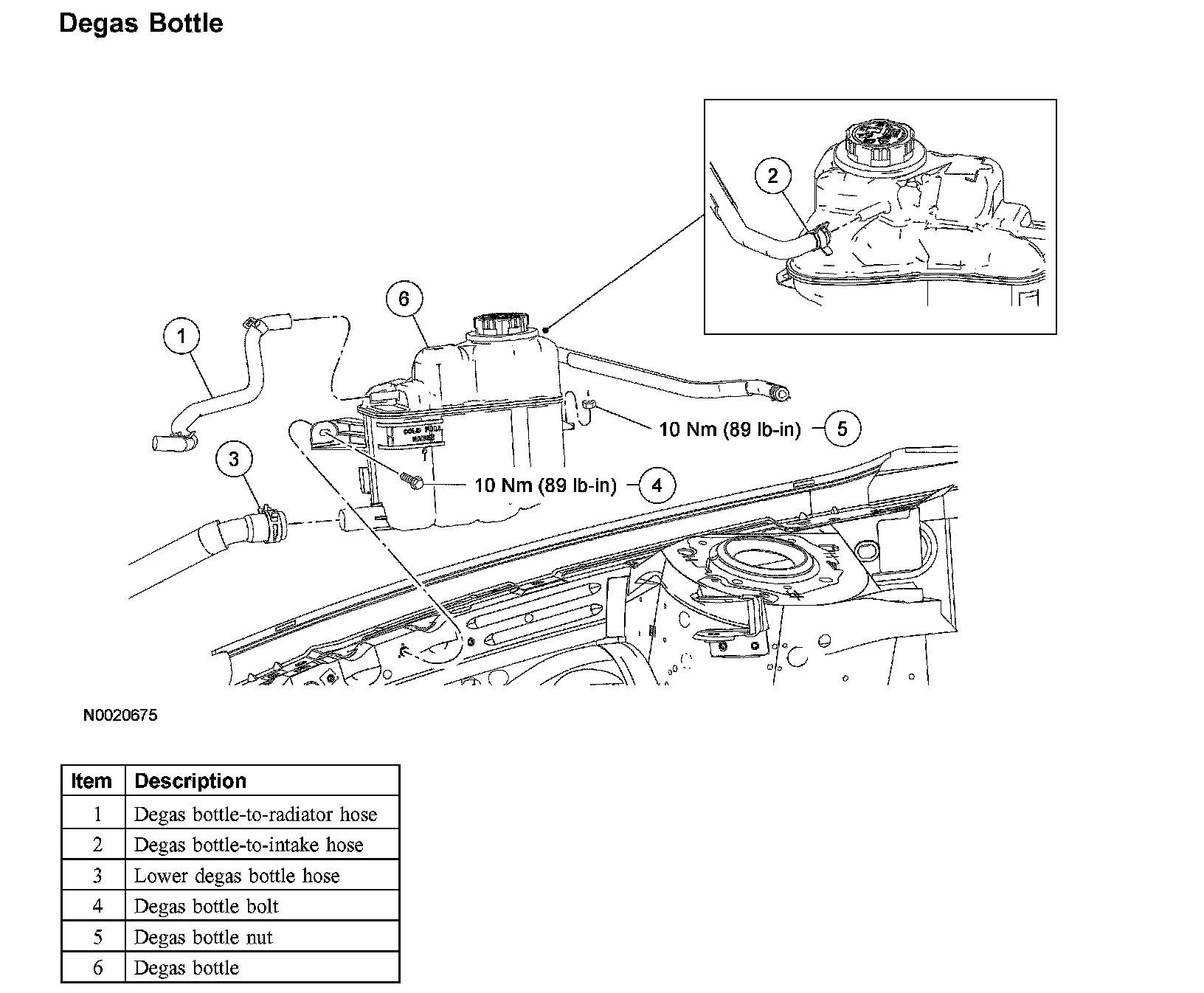

Degas Bottle

Degas Bottle:

Removal and Installation
1. Drain the cooling system.
2. Disconnect the 2 upper degas bottle hoses and position aside.
3. Disconnect the lower degas bottle hose and position aside.
4. Remove the bolt and the nut, and remove the degas bottle.
^ To install, tighten to 10 Nm (89 inch lbs.).
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
